AO3401A _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AO3401A
Manufacturer	UMW
Other Part Numbers	4518-AO3401ATR-ND 4518-AO3401ACT-ND 4518-AO3401ADKR-ND 4518-AO3401ADKR UMW AO3401A 4518-UMWAO3401ATR-ND 4518-UMWAO3401ATR 4518-AO3401ATR 4518-AO3401ACT
Description	30V 4.1A 65MR@10V,4.2A 350MW 1.3
Detailed Description	P-Channel 30 V 4.2A (Ta) 1.4W (Ta) Surface Mount SOT-23
Manufacturer Standard Lead Time	2 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		UMW
Series		UMW
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

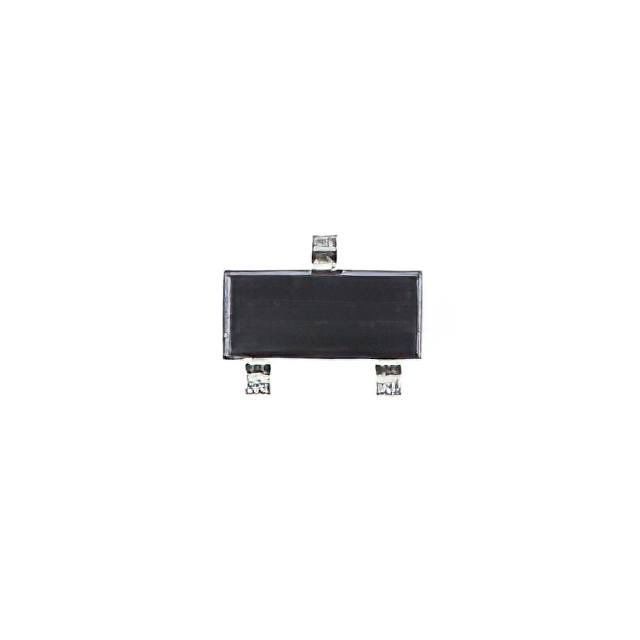

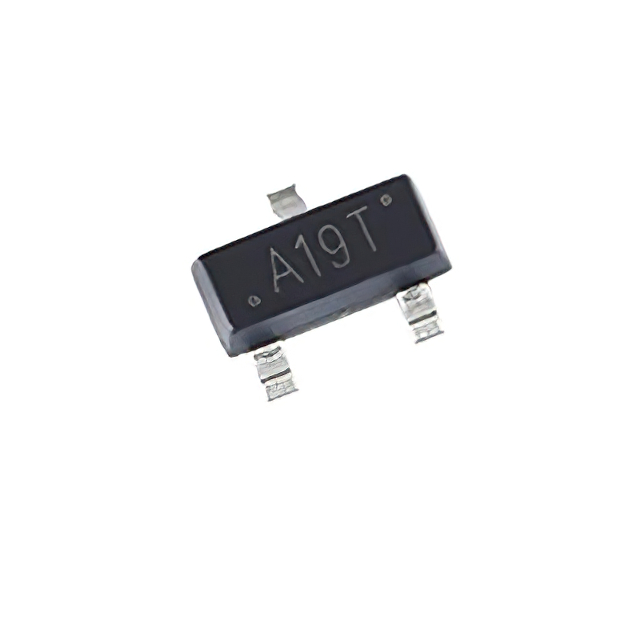

Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		4.2A (Ta)
Rds On (Max) @ Id, Vgs		50mOhm @ 4.2A, 10V
Power Dissipation (Max)		1.4W (Ta)
Vgs(th) (Max) @ Id		1.3V @ 250µA
Supplier Device Package		SOT-23
Drive Voltage (Max Rds On, Min Rds On)		2.5V, 10V
Vgs (Max)		±12V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		9.4 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		954 pF @ 15 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

Can ship immediately.
