AO3402L _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AO3402L
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	AO3402L-ND
Description	MOSFET N-CH 30V 4A SOT23-3
Detailed Description	N-Channel 30 V 4A (Ta) 1.4W (Ta) Surface Mount SOT-23-3
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

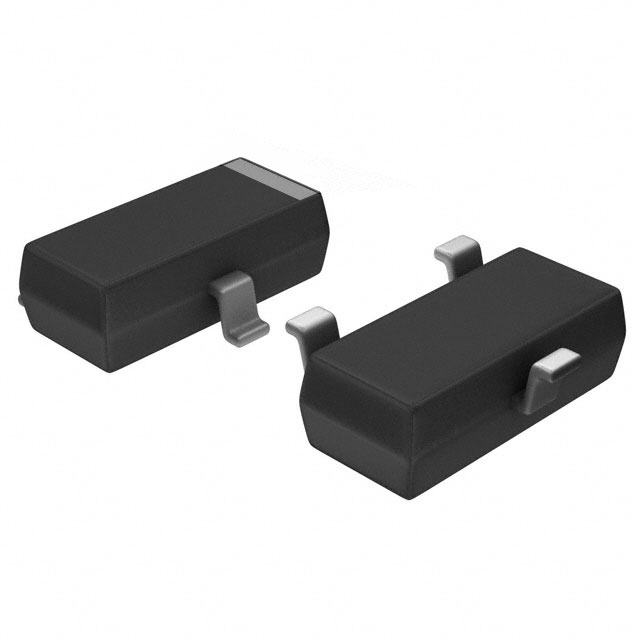

Package / Case		3-SMD, SOT-23-3 Variant
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		4A (Ta)
Rds On (Max) @ Id, Vgs		55mOhm @ 4A, 10V
Power Dissipation (Max)		1.4W (Ta)
Vgs(th) (Max) @ Id		1.4V @ 250µA
Supplier Device Package		SOT-23-3
Drive Voltage (Max Rds On, Min Rds On)		2.5V, 10V
Vgs (Max)		±12V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		4.34 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds		390 pF @ 15 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
