AOD3T40P _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AOD3T40P
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	785-1720-2-ND 785-1720-1-ND 785-1720-6-ND 785-1720-2 785-1720-1 785-1720-6 5202-AOD3T40PTR
Description	MOSFET N-CH 400V 2A TO252
Detailed Description	N-Channel 400 V 2A (Tc) 35W (Tc) Surface Mount TO-252 (DPAK)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

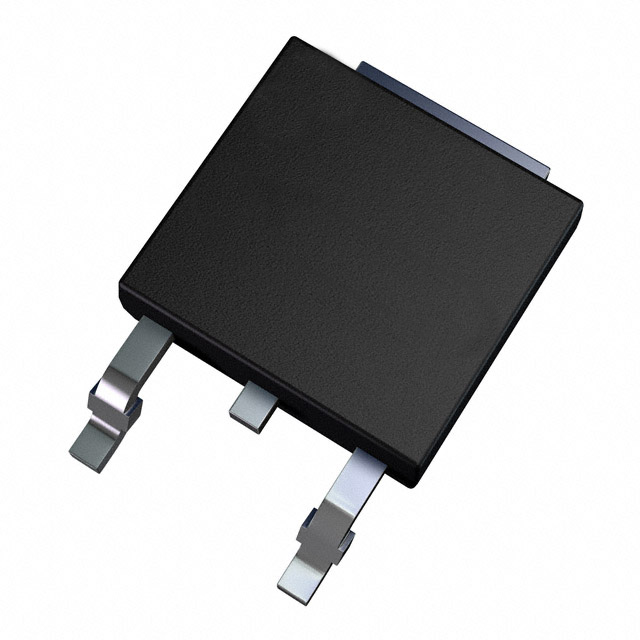

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-50°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		2A (Tc)
Rds On (Max) @ Id, Vgs		3.3Ohm @ 1A, 10V
Power Dissipation (Max)		35W (Tc)
Vgs(th) (Max) @ Id		5V @ 250µA
Supplier Device Package		TO-252 (DPAK)
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		400 V
Gate Charge (Qg) (Max) @ Vgs		6 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		139 pF @ 100 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
