AOD496A _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AOD496A
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	AOD496A-ND
Description	MOSFET N-CH 30V 11A/57A TO252
Detailed Description	N-Channel 30 V 11A (Ta), 57A (Tc) 2.3W (Ta), 50W (Tc) Surface Mount TO-252 (DPAK)

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

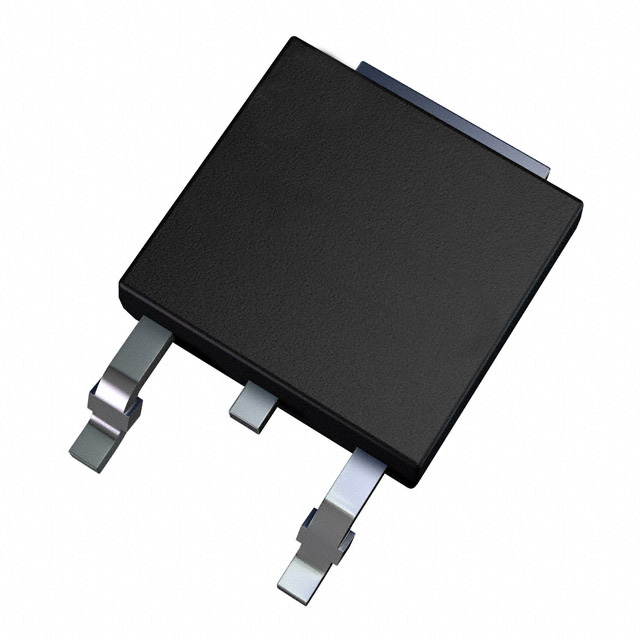

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		11A (Ta), 57A (Tc)
Rds On (Max) @ Id, Vgs		9mOhm @ 20A, 10V
Power Dissipation (Max)		2.3W (Ta), 50W (Tc)
Vgs(th) (Max) @ Id		2.2V @ 250µA
Supplier Device Package		TO-252 (DPAK)
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		18 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		770 pF @ 15 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
