Part Number | AOK20B135E1 |
---|---|
Manufacturer | Alpha and Omega Semiconductor, Inc. |
Other Part Numbers | 785-1751-ND 785-1751 5202-AOK20B135E1 |
Description | IGBT 1350V 20A 340W TO247 |
Detailed Description | IGBT 1350 V 40 A 250 W Through Hole TO-247 |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Alpha and Omega Semiconductor, Inc. | |
Series | Alpha IGBT™ | |
Packaging | Tube | |
Part Status | Obsolete | |

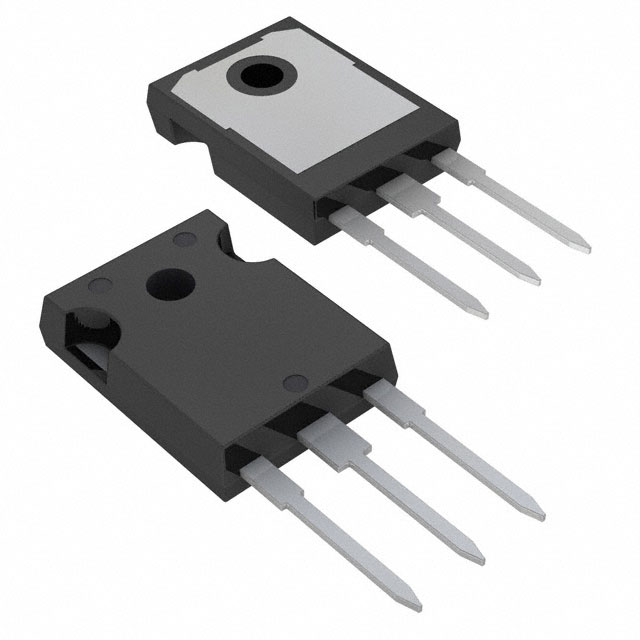

Package / Case | TO-247-3 | |
Mounting Type | Through Hole | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Input Type | Standard | |
Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 20A | |
Supplier Device Package | TO-247 | |
Td (on/off) @ 25°C | -/134ns | |
Switching Energy | 800µJ (off) | |
Test Condition | 600V, 20A, 15Ohm, 15V | |
Gate Charge | 58 nC | |
Current - Collector (Ic) (Max) | 40 A | |
Voltage - Collector Emitter Breakdown (Max) | 1350 V | |
Current - Collector Pulsed (Icm) | 80 A | |
Power - Max | 250 W |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | AOK20B135E1 | |
Datasheets | AOS Green Policy | |
Datasheets | Alpha & Omega RoHS | |
Datasheets | Alpha & Omega REACH | |
Datasheets | OBS NOTICE 08/Sep/2023 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.29.0095 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
