Part Number	AOL1712
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	AOL1712-ND
Description	MOSFET N-CH 30V 16A/65A ULTRASO8
Detailed Description	N-Channel 30 V 16A (Ta), 65A (Tc) 2.1W (Ta), 100W (Tc) Surface Mount UltraSO-8™

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series		SRFET™
Packaging		Tape & Reel (TR)
Part Status		Obsolete

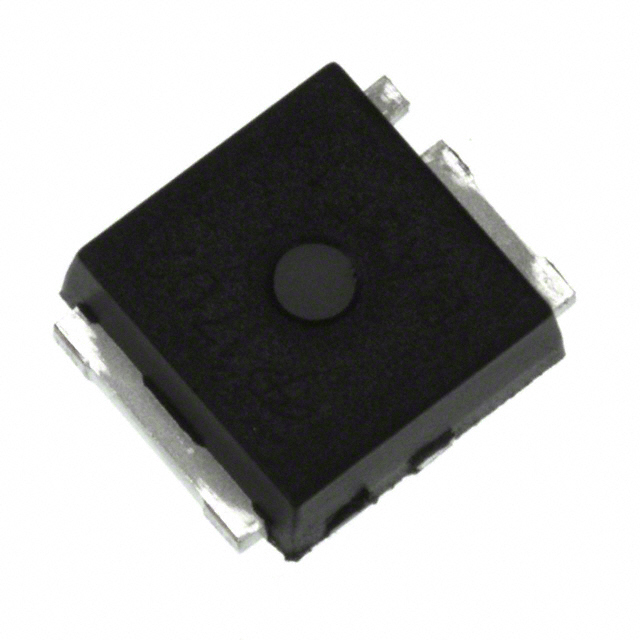

Package / Case		3-PowerSMD, Flat Leads
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		16A (Ta), 65A (Tc)
Rds On (Max) @ Id, Vgs		4.2mOhm @ 20A, 10V
FET Feature		Schottky Diode (Body)
Power Dissipation (Max)		2.1W (Ta), 100W (Tc)
Vgs(th) (Max) @ Id		2.5V @ 250µA
Supplier Device Package		UltraSO-8™
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±12V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		95 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		5120 pF @ 15 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
