AON7532E _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AON7532E
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	785-1678-2-ND 785-1678-1-ND 785-1678-6-ND 785-1678-2 785-1678-1 785-1678-6
Description	MOSFET N-CH 30V 30.5A/28A 8DFN
Detailed Description	N-Channel 30 V 30.5A (Ta), 28A (Tc) 5W (Ta), 28W (Tc) Surface Mount 8-DFN (3x3)

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series		AlphaMOS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

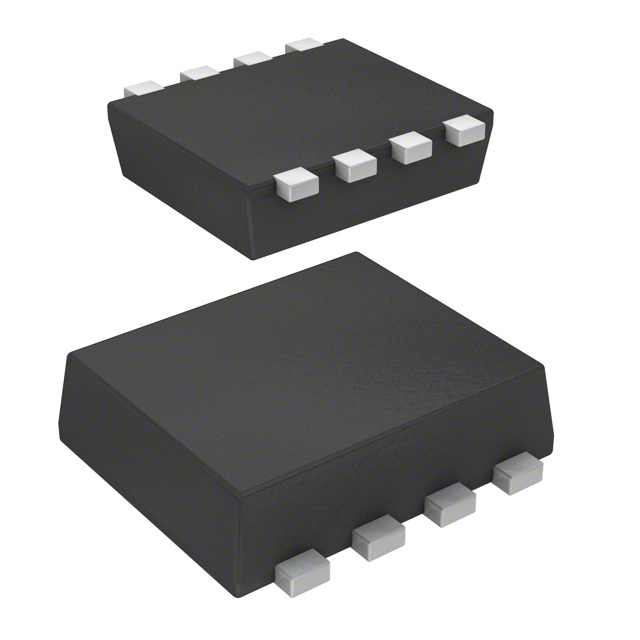

Package / Case		8-SMD, Flat Lead
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		30.5A (Ta), 28A (Tc)
Rds On (Max) @ Id, Vgs		3.5mOhm @ 20A, 10V
Power Dissipation (Max)		5W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id		2.2V @ 250µA
Supplier Device Package		8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		40 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1950 pF @ 15 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
