Part Number	AOT5B65M1
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	785-1765-ND 785-1765 5202-AOT5B65M1

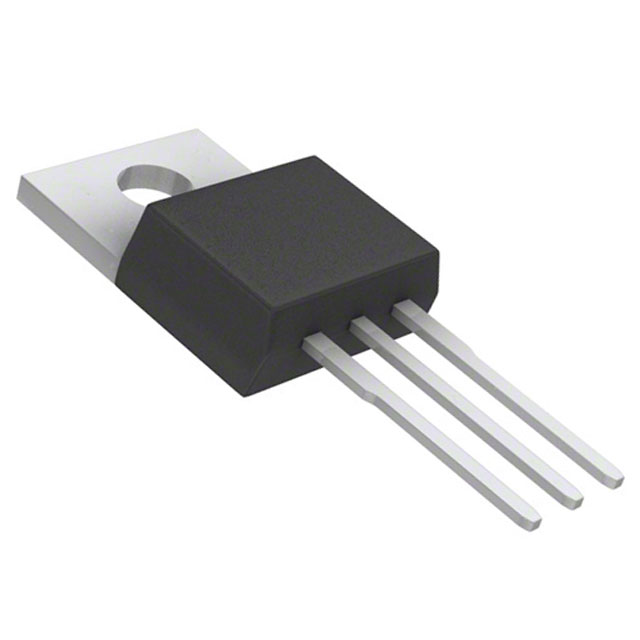

Description	IGBT 650V 5A TO220
Detailed Description	IGBT 650 V 10 A 83 W Through Hole TO-220
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series		Alpha IGBT™
Packaging		Tube
Part Status		Active
Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Input Type		Standard
Reverse Recovery Time (trr)		195 ns
Vce(on) (Max) @ Vge, Ic		1.98V @ 15V, 5A
Supplier Device Package		TO-220
Td (on/off) @ 25°C		8.5ns/106ns
Switching Energy		80µJ (on), 70µJ (off)
Test Condition		400V, 5A, 60Ohm, 15V
Gate Charge		14 nC
Current - Collector (Ic) (Max)		10 A
Voltage - Collector Emitter Breakdown (Max)		650 V
Current - Collector Pulsed (Icm)		15 A
Power - Max		83 W

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
