AOTF20N40L _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AOTF20N40L
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	785-1432-5-ND 5202-AOTF20N40L 785-1432-5
Description	MOSFET N-CH 400V 20A TO220-3F
Detailed Description	N-Channel 400 V 20A (Tc) 40W (Tc) Through Hole TO-220F
Manufacturer Standard Lead Time	16 weeks

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series
Packaging		Tube
Part Status		Active

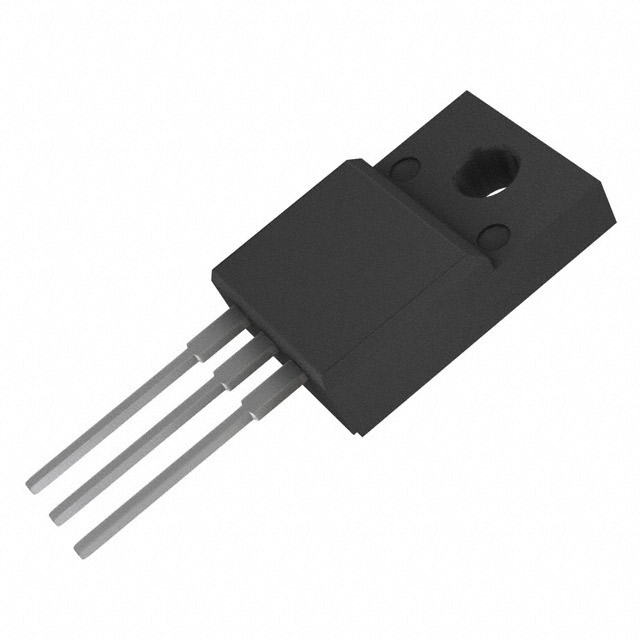

Package / Case		TO-220-3 Full Pack
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		20A (Tc)
Rds On (Max) @ Id, Vgs		250mOhm @ 10A, 10V
Power Dissipation (Max)		40W (Tc)
Vgs(th) (Max) @ Id		4.3V @ 250µA
Supplier Device Package		TO-220F
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		400 V
Gate Charge (Qg) (Max) @ Vgs		45 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		2290 pF @ 25 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
