Part Number	AOY526
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	AOY526-ND
Description	MOSFET N-CH 30V 18A/50A TO251B
Detailed Description	N-Channel 30 V 18A (Ta), 50A (Tc) 2.5W (Ta), 50W (Tc) Through Hole TO-251B

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series
Packaging		Tube
Part Status		Obsolete

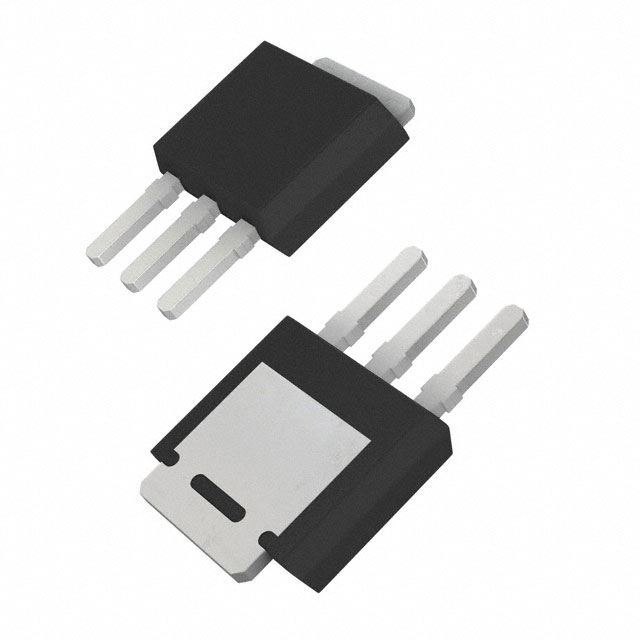

Package / Case		TO-251-3 Stub Leads, IPAK
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		18A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs		5mOhm @ 20A, 10V
Power Dissipation (Max)		2.5W (Ta), 50W (Tc)
Vgs(th) (Max) @ Id		2.4V @ 250µA
Supplier Device Package		TO-251B
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		33 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1550 pF @ 15 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
