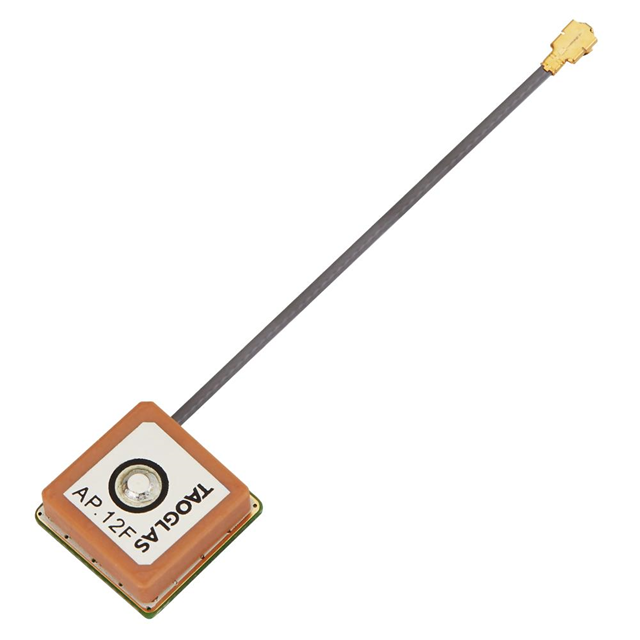

AP.12F.07.0045A

AP.12F.07.0045A

Part Number	AP.12F.07.0045A
Manufacturer	Taoglas
Other Part Numbers	931-1227-ND AP12F070045A 931-1227 2266-AP.12F.07.0045A
Description	RF ANT 1.575GHZ CER PATCH MHFI
Detailed Description	1.575GHz GPS Ceramic Patch RF Antenna -5dBic U.FL (UMCC), IPEX MHF1 Adhesive
Manufacturer Standard Lead Time	11 weeks

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Taoglas
Series
Packaging		Tray
Part Status		Active
Features		LNA, Filter
Mounting Type		Adhesive
Applications		GPS
Gain		-5dBic
Termination		U.FL (UMCC), IPEX MHF1
Number of Bands		1
VSWR		2
Antenna Type		Ceramic Patch
Height (Max)		0.138" (3.50mm)
Frequency Group		UHF (1GHz ~ 2GHz)
Frequency (Center/Band)		1.575GHz
RF Family/Standard		Navigation

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		7A994
HTSUS		8529.10.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 13

Can ship immediately.
