APT100GN120JDQ4

APT100GN120JDQ4

Part Number	APT100GN120JDQ4
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	APT100GN120JDQ4-ND

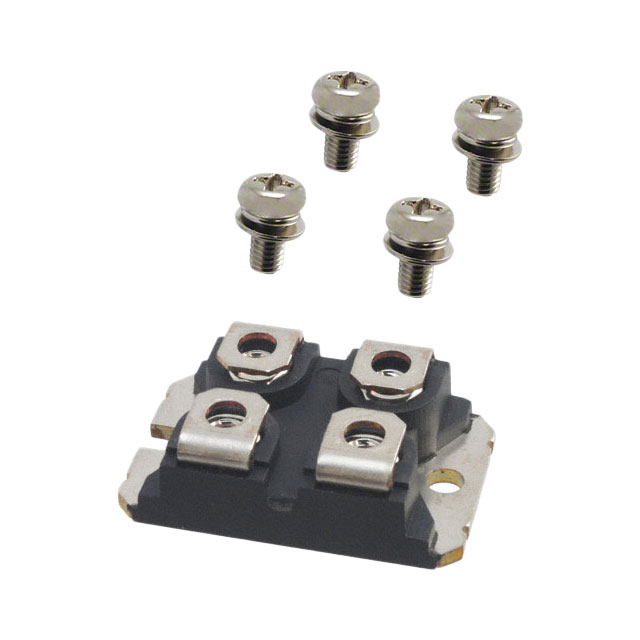

Description	IGBT MOD 1200V 153A 446W ISOTOP
Detailed Description	IGBT Module Trench Field Stop Single 1200 V 153 A 446 W Chassis Mount ISOTOP®
Manufacturer Standard Lead Time	38 weeks

Product Attributes

Category		Discrete Semiconductor Products Transistors IGBTs IGBT Modules
Manufacturer		Roving Networks (Microchip Technology)
Series
Packaging		Tube
Part Status		Active
Package / Case		SOT-227-4, miniBLOC
Mounting Type		Chassis Mount
Input		Standard
Configuration		Single
Operating Temperature		-55°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic		2.1V @ 15V, 100A
NTC Thermistor		No
Supplier Device Package		ISOTOP®
IGBT Type		Trench Field Stop
Current - Collector (Ic) (Max)		153 A
Voltage - Collector Emitter Breakdown (Max)		1200 V
Power - Max		446 W
Current - Collector Cutoff (Max)		200 µA
Input Capacitance (Cies) @ Vce		6.5 nF @ 25 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
