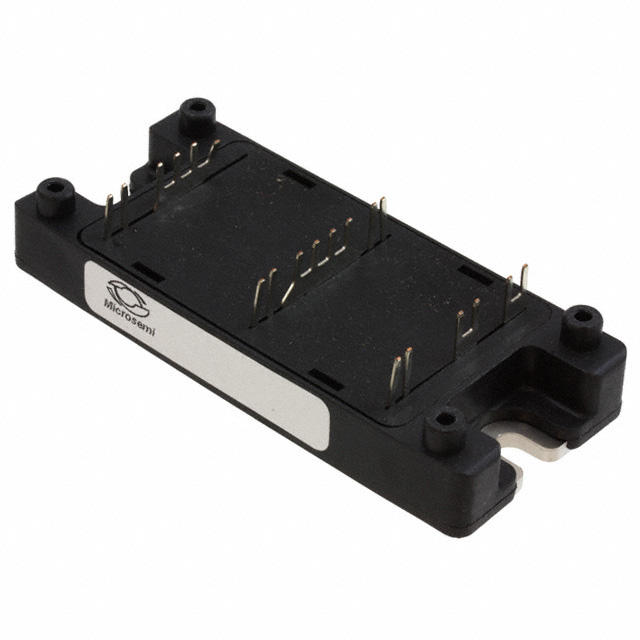

APTGT200DU60TG

Part Number
APTGT200DU60TG
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
APTGT200DU60TG-ND
Description IGBT MODULE 600V 290A 625W SP4
Detailed Description IGBT Module Trench Field Stop Dual, Common Source 600 V 290 A 625 W Chassis Mount SP4
Manufacturer Standard Lead Time 37 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
Packaging
Bulk
Part Status Active
Package / Case SP4
Mounting Type Chassis Mount
Input Standard
Configuration Dual, Common Source
Operating Temperature -40°C ~ 175°C (TJ)
Vce(on) (Max) @ Vge, Ic 1.9V @ 15V, 200A
NTC Thermistor Yes
Supplier Device Package SP4
IGBT Type Trench Field Stop
Current - Collector (Ic) (Max) 290 A
Voltage - Collector Emitter Breakdown (Max) 600 V
Power - Max 625 W
Current - Collector Cutoff (Max) 250 µA
Input Capacitance (Cies) @ Vce 12.3 nF @ 25 V

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
