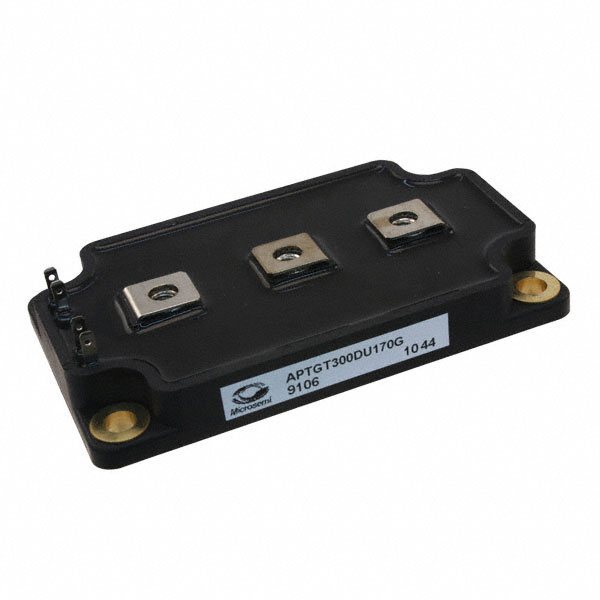

APTGT300DU170G

Part Number
APTGT300DU170G
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
APTGT300DU170G-ND
Description IGBT MODULE 1700V 400A 1660W SP6
Detailed Description IGBT Module Trench Field Stop Dual, Common Source 1700 V 400 A 1660 W Chassis Mount SP6
Manufacturer Standard Lead Time 37 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
Packaging
Bulk
Part Status Active
Package / Case SP6
Mounting Type Chassis Mount
Input Standard
Configuration Dual, Common Source
Operating Temperature -40°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 300A
NTC Thermistor No
Supplier Device Package SP6
IGBT Type Trench Field Stop
Current - Collector (Ic) (Max) 400 A
Voltage - Collector Emitter Breakdown (Max) 1700 V
Power - Max 1660 W
Current - Collector Cutoff (Max) 750 µA
Input Capacitance (Cies) @ Vce 26.5 nF @ 25 V

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
