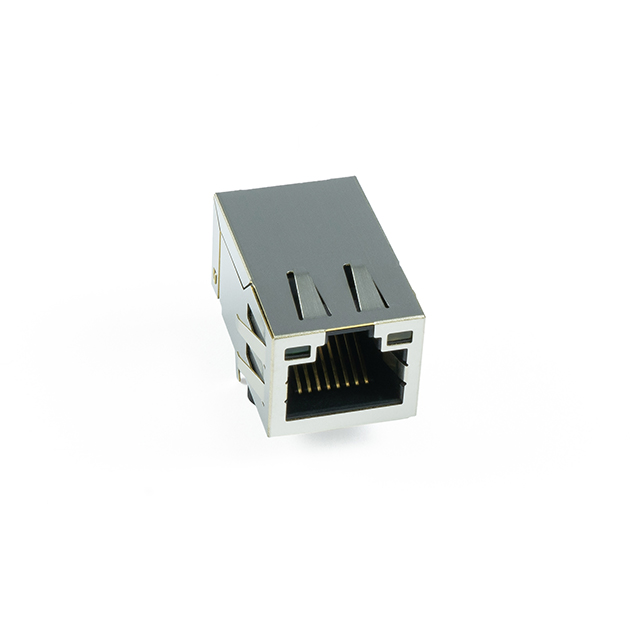

AR11-3780I _ Modular Connector Jacks With Magnetics_Modular Connectors_Connectors, Interconnects

Part Number	AR11-3780I
Manufacturer	Allied Components International
Other Part Numbers	3475-AR11-3780I-ND 3475-AR11-3780I
Description	CONN MOD JACK SINGLE PORT RIGHT
Detailed Description	1 Port RJ45Through Hole 10/100 Base-T
Datasheet	Datasheet

Category		Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
Manufacturer		Allied Components International
Series
Packaging		Tray
Part Status		Active
Features		Board Lock
Connector Type		RJ45
Contact Finish		Nickel
Mounting Type		Through Hole
Shielding		Shielded, EMI Finger
Orientation		90° Angle (Right)
Operating Temperature		-40°C ~ 85°C
Applications		10/100 Base-T
Termination		Solder
LED Color		Green - Yellow
Number of Cores per Jack		4
Height Above Board		0.535" (13.59mm)
Tab Direction		Up
Contact Finish Thickness		40.0µin (1.02µm)
Shield Material		Brass
Contact Material		Phosphor Bronze
Housing Material		Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Ports		1
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		AR11-3780I

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH info available upon request
RoHS Status		ROHS3 Compliant
