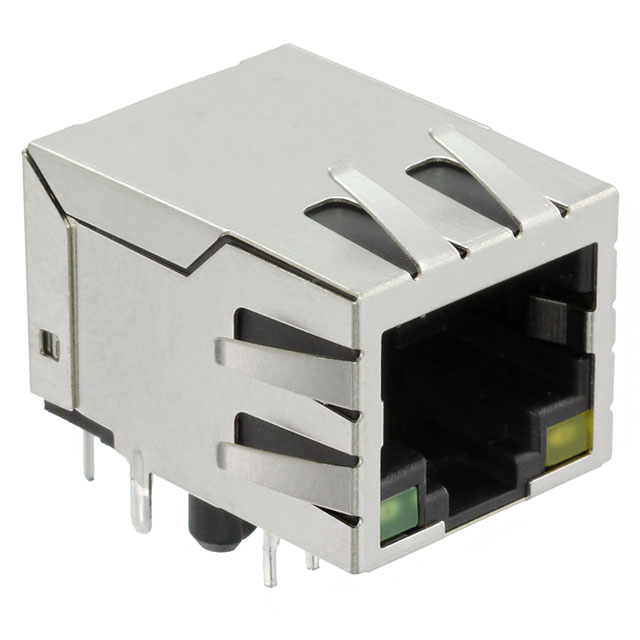

ARJ11E-MCSA-A-B-EM2 _ Modular Connector Jacks With Magnetics_Modular Connectors_Connectors, Interconnects

Part Number	ARJ11E-MCSA-A-B-EM2
Manufacturer	Abracon
Other Part Numbers	535-13033-ND ARJ11E-MCSA-A-B-EM2-ND ARJ11EMCSAABEM2 -ARJ11E-MCSA-A-B-EM2 535-13033
Description	CONN JACK 1PORT 1000 BASE-TX PCB
Detailed Description	1 Port RJ45Through Hole 10/100/1000 Base-TX, AutoMDIX
Manufacturer Standard Lead Time	31 weeks

Category		Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
Manufacturer		Abracon
Series		ARJ11E
Packaging		Tray
Part Status		Active
Features		Board Lock
Connector Type		RJ45
Contact Finish		Gold
Mounting Type		Through Hole
Shielding		Shielded, EMI Finger
Orientation		90° Angle (Right)
Operating Temperature		0°C ~ 70°C
Applications		10/100/1000 Base-TX, AutoMDIX
Termination		Solder
LED Color		Green - Yellow
Number of Cores per Jack		8
Height Above Board		0.545" (13.84mm)
Tab Direction		Down
Contact Finish Thickness		6.00µin (0.152µm)
Number of Ports		1
Number of Rows		1

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Tray	1	$7.09	$7.09
Total Amount: $7.09
