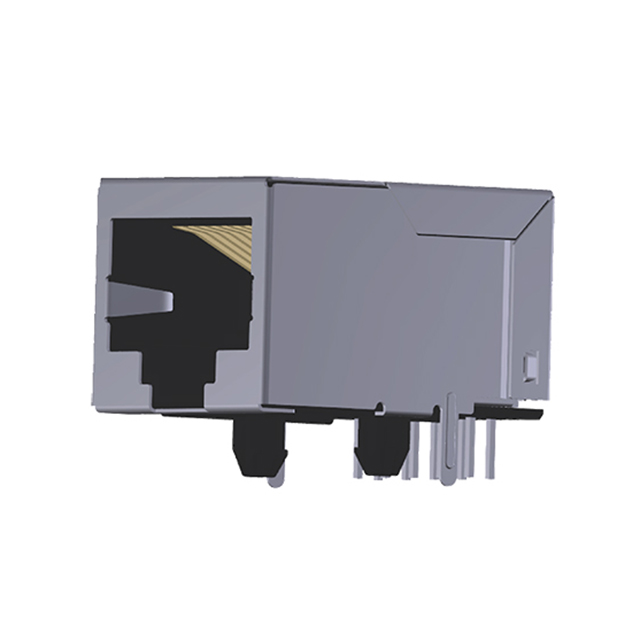

ARJM11B1-009-NN-EW2

ARJM11B1-009-NN-EW2

Part Number
ARJM11B1-009-NN-EW2
Manufacturer Abracon
Other Part Numbers
535-14145-ND
ARJM11B1-009-NN-EW2-ND
2266-ARJM11B1-009-NN-EW2
535-14145
Description CONN JACK 1PORT 100 BASE-T PCB
Detailed Description 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Manufacturer Standard Lead Time 23 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Abracon
Series
ARJM11
Packaging
Tray
Part Status Active
Features Board Lock
Connector Type RJ45
Contact Finish Gold
Mounting Type Through Hole
Shielding Shielded
Orientation 90° Angle (Right)
Operating Temperature -40°C ~ 85°C
Applications 10/100 Base-T, AutoMDIX
Termination Solder
LED Color Does Not Contain LED
Number of Cores per Jack 4
Height Above Board 0.535" (13.59mm)
Tab Direction Down
Contact Finish Thickness 6.00µin (0.152µm)
Number of Ports 1
Number of Rows 1

Documents & Media

RESOURCE TYPE LINK
Datasheets ARJM11B1-009-NN-EW2
Datasheets ARJM11,15 Series Flyer
Datasheets Abracon REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1474

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
Tray 1 $3.23 $3.23
Total Amount: $3.23

Tray

QUANTITY UNIT PRICE EXT PRICE
1 $3.23 $3.23
10 $2.94 $29.40
25 $2.78 $69.50
40 $2.71 $108.40
80 $2.59 $207.20
230 $2.26 $519.80
440 $2.20 $968.00
2,000 $1.81 $3,620.00
4,000 $1.75 $7,000.00
