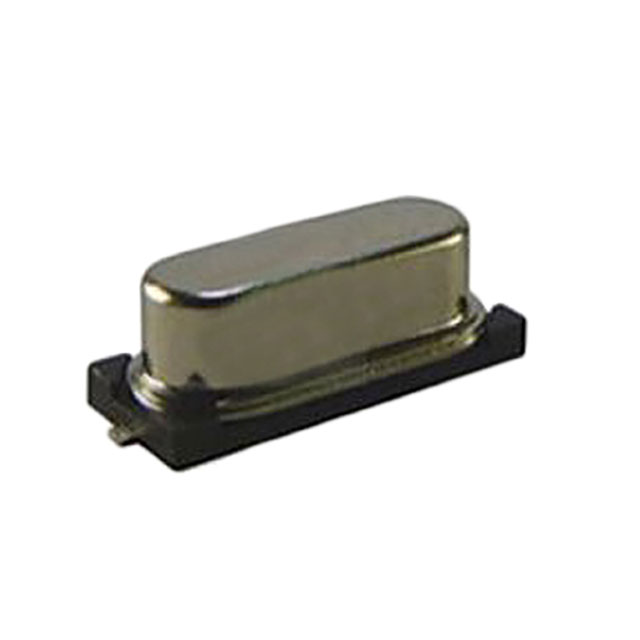

AS-13.000-18-SMD-TR

AS-13.000-18-SMD-TR

Part Number
AS-13.000-18-SMD-TR
Manufacturer Raltron
Other Part Numbers
2151-AS-13.000-18-SMD-TR-ND
2151-AS-13.000-18-SMD-TRCT-ND
2151-AS-13.000-18-SMD-TRDKR-ND
-2344-AS-13.000-18-SMD-TR
2151-AS-13.000-18-SMD-TRDKR
2151-AS-13.000-18-SMD-TRCT
-2344-AS-13.000-18-SMD-TRCT
-2344-AS-13.000-18-SMD-CT-ND
-2344-AS-13.000-18-SMD-TR-ND
2151-AS-13.000-18-SMD-TR
Description CRYSTAL 13.0000MHZ 18PF SMD
Detailed Description 13 MHz ±30ppm Crystal 18pF 50 Ohms HC-49/US
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Raltron
Series
AS-SMD
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case HC-49/US
Load Capacitance 18pF
Size / Dimension 0.472" L x 0.189" W (12.00mm x 4.80mm)
Mounting Type Surface Mount
Type MHz Crystal
Operating Temperature -20°C ~ 70°C
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Operating Mode Fundamental
Height - Seated (Max) 0.157" (4.00mm)
ESR (Equivalent Series Resistance) 50 Ohms
Frequency 13 MHz

Documents & Media

RESOURCE TYPE LINK
Datasheets AS-13.000-18-SMD-TR
Datasheets AS-SMD Series

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.60.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
