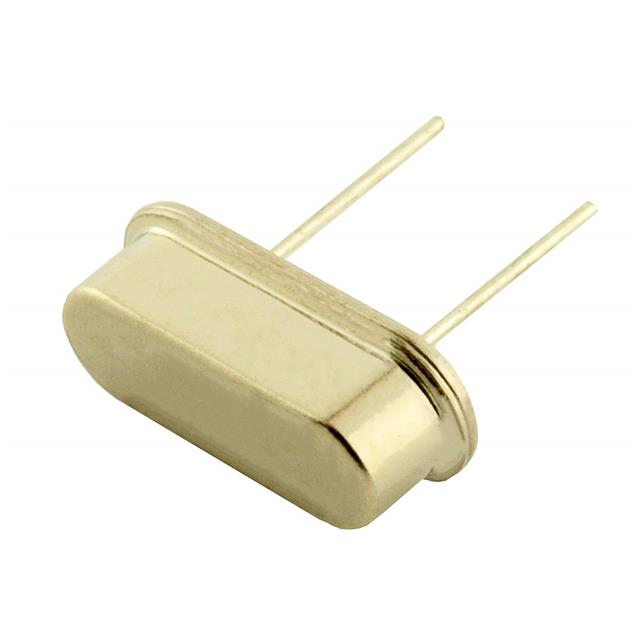

AS-25.000-18-F-TR

AS-25.000-18-F-TR

Part Number	AS-25.000-18-F-TR
Manufacturer	Raltron
Other Part Numbers	2151-AS-25.000-18-F-TR-ND 2151-AS-25.000-18-F-TRCT-ND 2151-AS-25.000-18-F-TRDKR 2151-AS-25.000-18-F-TR -2344-AS-25.000-18-F-CT-ND 2151-AS-25.000-18-F-TRCT -2344-AS-25.000-18-F-TR-ND -2344-AS-25.000-18-F-TR 2151-AS-25.000-18-F-TRDKR-ND -2344-AS-25.000-18-F-TRCT 2151-AS-25.000-18-F-TRDKRINACTIVE
Description	CRYSTAL 25.0000MHZ 18PF TH
Detailed Description	25 MHz ±30ppm Crystal 18pF 40 Ohms HC-49/US
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		AS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		HC-49/US
Load Capacitance		18pF
Size / Dimension		0.447" L x 0.197" W (11.35mm x 5.00mm)
Mounting Type		Through Hole
Type		MHz Crystal
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.138" (3.50mm)
ESR (Equivalent Series Resistance)		40 Ohms
Frequency		25 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AS-25.000-18-F-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Available To Order

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.12	$0.12
Total Amount: $0.12

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
1,000	$0.06	$60.00
3,000	$0.06	$180.00
5,000	$0.06	$300.00
10,000	$0.06	$600.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.12	$0.12
10	$0.10	$1.00
50	$0.09	$4.50
100	$0.08	$8.00
500	$0.08	$40.00
