AS06004CO-C-R

AS06004CO-C-R

Part Number	AS06004CO-C-R
Manufacturer	PUI Audio, Inc.
Other Part Numbers	668-AS06004CO-C-R-ND 668-AS06004CO-C-R

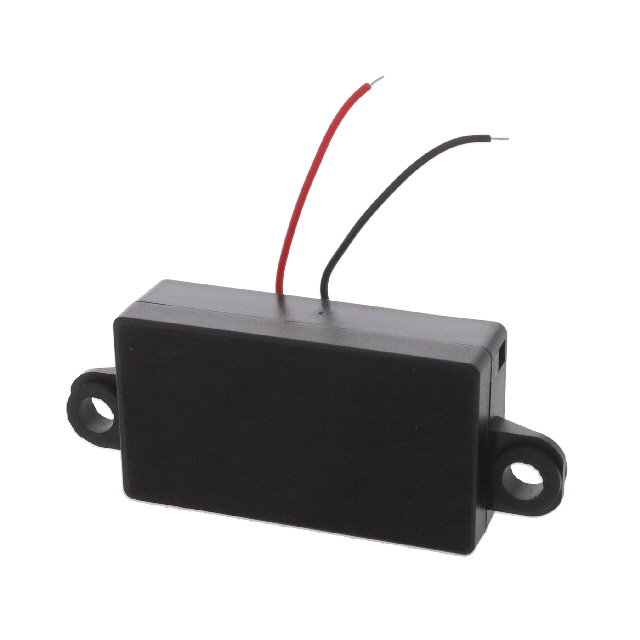

Description	SPEAKER 4OHM 2W TOP PORT 87DB
Detailed Description	4 Ohms General Purpose Speaker 2 W 200 Hz ~ 20 kHz Top Rectangular
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Audio Products Speakers
Manufacturer		PUI Audio, Inc.
Series		AS
Packaging		Tray
Part Status		Active
Size / Dimension		2.835" L x 1.299" W (72.00mm x 33.00mm)
Shape		Rectangular
Type		General Purpose
Operating Temperature		-20°C ~ 60°C
Technology		Magnetic
Material - Cone		Cloth
Material - Magnet		Nd-Fe-B
Termination		Wire Leads
Frequency - Self Resonant		650Hz
Port Location		Top
Height - Seated (Max)		0.709" (18.00mm)
Impedance		4 Ohms
Power - Max		4 W
Power - Rated		2 W
Frequency Range		200 Hz ~ 20 kHz
Efficiency - dBA		87.00
Efficiency - Testing		1W/500mm
Efficiency - Type		Sound Pressure Level (SPL)
Distortion Rating		5% Max

Documents & Media

RESOURCE TYPE		LINK
Datasheets		AS06004CO-C-R

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8518.29.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
