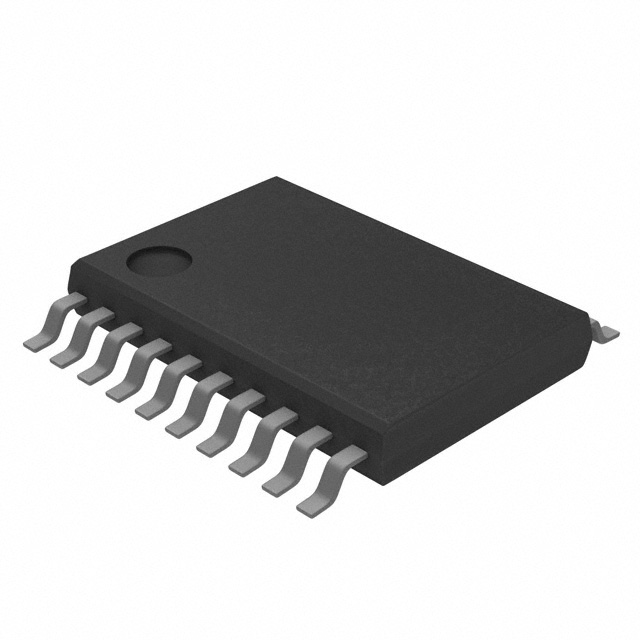

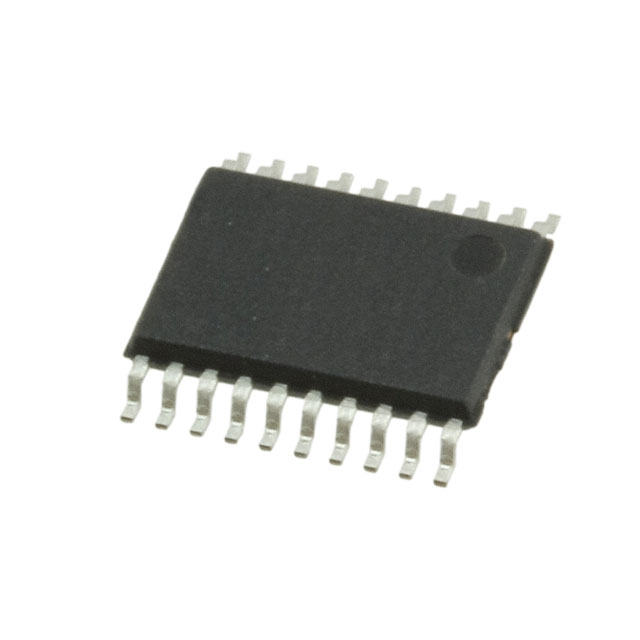

Part Number |
AS5304B-ATSU
|
---|---|
Manufacturer | OSRAM Opto Semiconductors (ams OSRAM) |
Other Part Numbers |
AS5304B-ATSU-ND
178750046
AS5304BATSU
|
Description | ROTARY ENCODER MAGNETIC 1280PPR |
Detailed Description | Rotary Encoder Magnetic 1280 Quadrature (Incremental) |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | OSRAM Opto Semiconductors (ams OSRAM) | |
Series | ||
Packaging |
Tube
|
|
Part Status | Obsolete | |
Output Type | Quadrature (Incremental) | |
Mounting Type | Surface Mount | |
Voltage - Supply | 4.5V ~ 5.5V | |
Encoder Type | Magnetic | |
Detent | No | |
Pulses per Revolution | 1280 | |
Actuator Type | External Magnet, Not Included | |
Built in Switch | No | |
DigiKey Programmable | Not Verified |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Tube 13/Jun/2017 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
REACH Status | REACH Unaffected |
