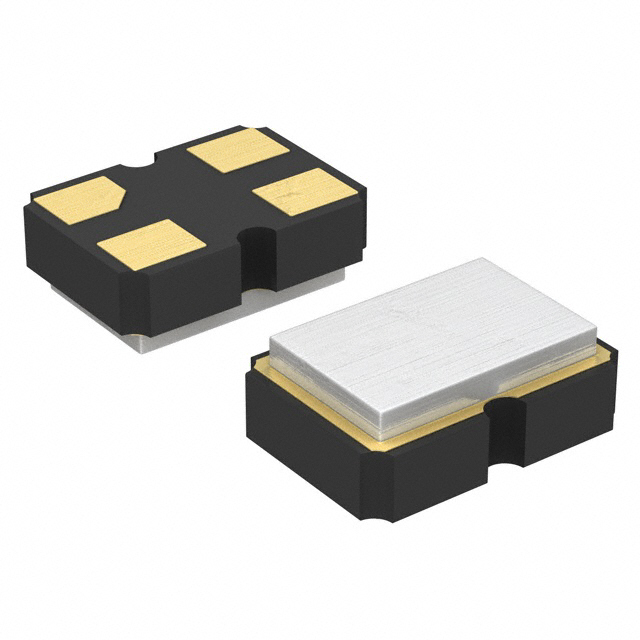

ASD1-20.000MHZ-LR-T

ASD1-20.000MHZ-LR-T

Part Number	ASD1-20.000MHZ-LR-T
Manufacturer	Abracon
Other Part Numbers	ASD1-20.000MHZ-LR-T-ND
Description	XTAL OSC XO 20.0000MHZ HCMOS SMD
Detailed Description	20 MHz XO (Standard) HCMOS Oscillator 3V Enable/Disable 4-SMD, No Lead
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Abracon
Series		ASD
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type		Surface Mount
Output		HCMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±25ppm
Voltage - Supply		3V
Current - Supply (Max)		6mA
Height - Seated (Max)		0.039" (1.00mm)
Frequency		20 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ASD1-20.000MHZ-LR-T
Datasheets		Abracon REACH
Datasheets		ASD.pdf

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
