ASMT-CW00

ASMT-CW00

Part Number
ASMT-CW00
Manufacturer Broadcom
Other Part Numbers
516-3481-2-ND
516-3481-1-ND
516-3481-6-ND
516-3481-2
516-3481-1
516-3481-6
ASMT-CW00-ND

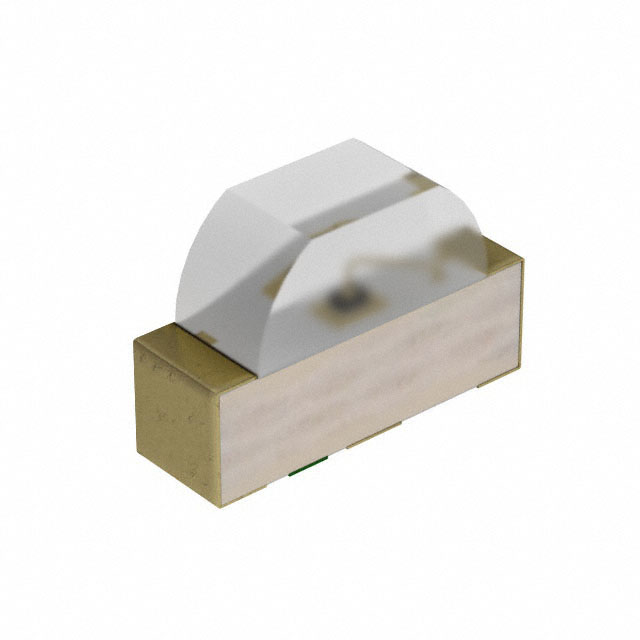

Description LED WHITE CLEAR 0603 SMD R/A
Detailed Description White LED Indication - Discrete 2.85V 2-SMD, No Lead
Manufacturer Standard Lead Time 17 weeks

Product Attributes

Category
Manufacturer Broadcom
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 2-SMD, No Lead
Color White
Size / Dimension 1.60mm L x 1.00mm W
Mounting Type Surface Mount, Right Angle
Millicandela Rating 35mcd
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.85V
Lens Color Colorless
Current - Test 5mA
Viewing Angle 150°
Height (Max) 0.45mm
Supplier Device Package 0603
Lens Transparency Clear
Lens Style Rectangle with Domed Top
Lens Size 1.20mm x 0.50mm

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 31209

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
Cut Tape (CT) 1 $0.84 $0.84
Total Amount: $0.84

Tape & Reel (TR)

QUANTITY UNIT PRICE EXT PRICE
4,000 $0.26 $1,040.00
8,000 $0.25 $2,000.00
12,000 $0.25 $3,000.00
28,000 $0.25 $7,000.00

Cut Tape (CT)

QUANTITY UNIT PRICE EXT PRICE
1 $0.84 $0.84
10 $0.55 $5.50
100 $0.36 $36.00
1,000 $0.28 $280.00
2,000 $0.26 $520.00
