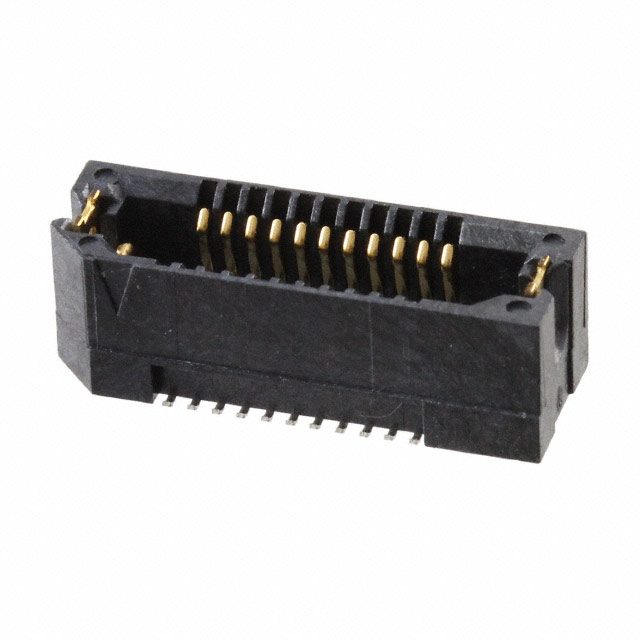

ASP-137969-01

ASP-137969-01

Part Number	ASP-137969-01
Manufacturer	Samtec, Inc.
Other Part Numbers	SAM9168-ND SAM9168
Description	CONN SOCKET 22POS SMD GOLD
Detailed Description	22 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		Samtec, Inc.
Series		ASP
Packaging		Tray
Part Status		Active
Features		VITA 57
Connector Type		Socket, Center Strip Contacts
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		22
Pitch		0.031" (0.80mm)
Height Above Board		0.215" (5.46mm)
Contact Finish Thickness		30.0µin (0.76µm)
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ASP-137969-01

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1655

Can ship immediately.
