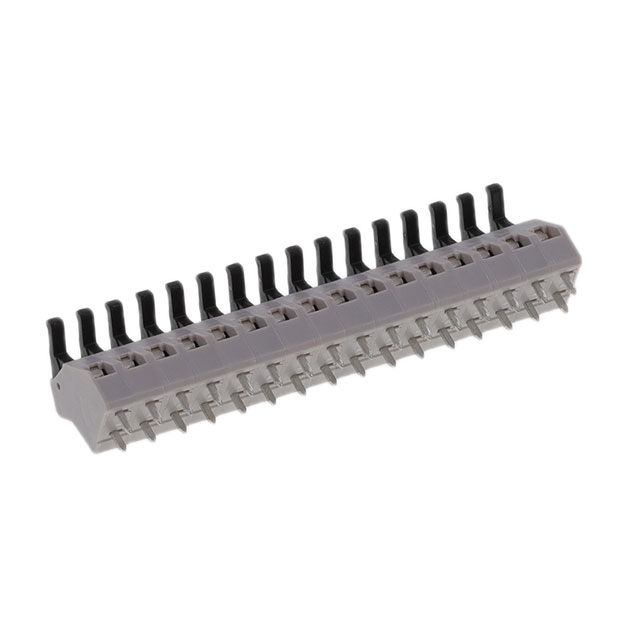

AST0451604 _ Wire to Board_Terminal Blocks_Connectors, Interconnects

Part Number	AST0451604
Manufacturer	RIA Connect / METZ CONNECT
Other Part Numbers	1849-AST0451604-ND 1849-AST0451604
Description	SPRING CLAMP TERMINAL BLOCK, 45
Detailed Description	16 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		RIA Connect / METZ CONNECT
Series
Packaging		Bulk
Part Status		Active
Features		Lever Actuated
Color		Gray
Mounting Type		Through Hole
Wire Gauge		14-28 AWG
Pitch		0.197" (5.00mm)
Operating Temperature		-40°C ~ 105°C
Mating Orientation		45° (135°) Angle with Board
Positions Per Level		16
Housing Material		Polyamide (PA46), Nylon 4/6
Contact Material - Plating		Copper Alloy - Tin Plated
Clamp Material - Plating		Steel
Wire Termination		Screwless - Spring Cage, Tension Clamp
Current		13 A
Number of Levels		1
Voltage		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
