Part Number | AST0550302 |
---|---|
Manufacturer | RIA Connect / METZ CONNECT |
Other Part Numbers | 1849-1043-ND 1849-1043 |

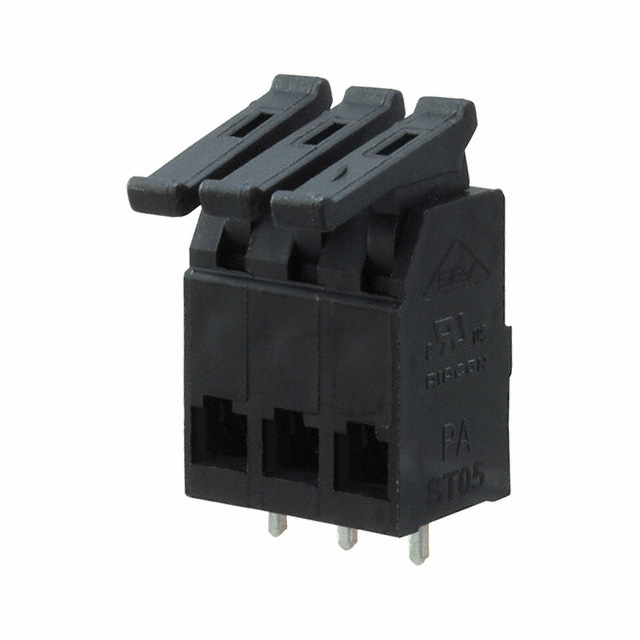

Description | TERM BLK 3POS SIDE ENTRY 5MM PCB |
Detailed Description | 3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole |
Manufacturer Standard Lead Time | 8 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | RIA Connect / METZ CONNECT | |
Series | ||
Packaging | Bulk | |
Part Status | Active | |
Features | Lever Actuated | |
Color | Black | |
Mounting Type | Through Hole | |
Wire Gauge | 12-28 AWG | |
Pitch | 0.197" (5.00mm) | |
Mating Orientation | Horizontal with Board | |
Positions Per Level | 3 | |
Wire Termination | Screwless - Spring Cage, Tension Clamp | |
Current | 12 A | |
Number of Levels | 1 | |
Voltage | 300 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | AST0550302 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.90.4000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $2.21 | $2.21 |
10 | $1.69 | $16.90 |
25 | $1.58 | $39.50 |
50 | $1.40 | $70.00 |
100 | $1.37 | $137.00 |
250 | $1.34 | $335.00 |
