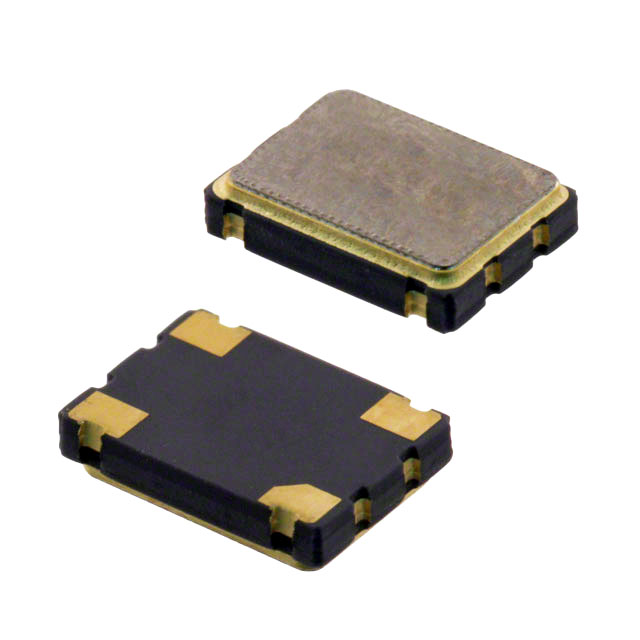

ASV-4.000MHZ-EJ-T

ASV-4.000MHZ-EJ-T

Part Number	ASV-4.000MHZ-EJ-T
Manufacturer	Abracon
Other Part Numbers	535-9329-2-ND 535-9329-1-ND 535-9329-6-ND 300-9329-2 535-9329-6 2266-ASV-4.000MHZ-EJ-T 300-9329-2-ND ASV-4.000MHZ-E-J-T ASV4000MHZEJT 535-9329-2 535-9329-1 300-9329-1-ND 300-9329-1 Q5376914
Description	XTAL OSC XO 4.0000MHZ HCMOS SMD
Detailed Description	4 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Manufacturer Standard Lead Time	29 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Abracon
Series		ASV
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.276" L x 0.200" W (7.00mm x 5.08mm)
Mounting Type		Surface Mount
Output		HCMOS
Function		Enable/Disable
Type		XO (Standard)
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±20ppm
Voltage - Supply		3.3V
Current - Supply (Max)		10mA
Current - Supply (Disable) (Max)		10µA
Height - Seated (Max)		0.071" (1.80mm)
Frequency		4 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ASV-4.000MHZ-EJ-T
Datasheets		Abracon REACH
Datasheets		ASV.pdf
Datasheets		ASV Series Bottom
Datasheets		ASV Series Footprint
Datasheets		ASV Series Side 1
Datasheets		ASV Series Side 2
Datasheets		ASV Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
