AT-1442-TT-WP-R _ Alarms, Buzzers, and Sirens_Audio Products

Part Number	AT-1442-TT-WP-R
Manufacturer	PUI Audio, Inc.
Other Part Numbers	668-AT-1442-TT-WP-R-ND 668-AT-1442-TT-WP-R

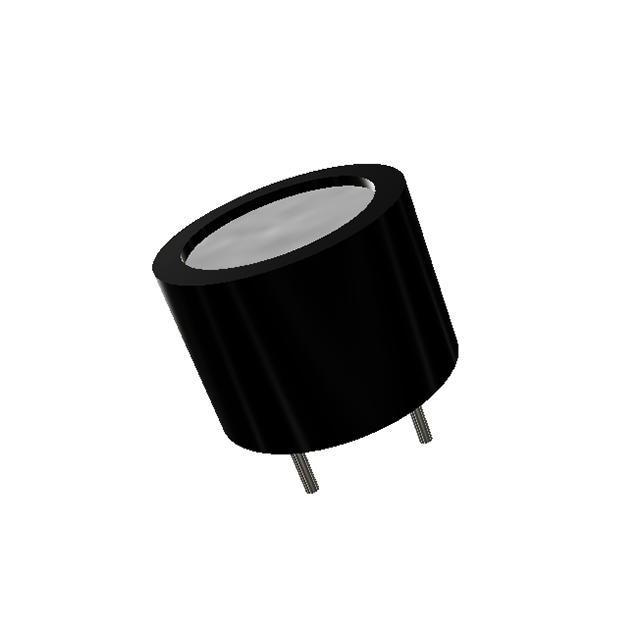

Description	BUZZER PIEZO 10V 14MM TH
Detailed Description	Buzzers Transducer, Externally Driven Piezo 10 V 12mA 4.25kHz 84dB @ 10V, 10cm Through Hole PC Pins
Manufacturer Standard Lead Time	20 weeks

Category		Audio Products Alarms, Buzzers, and Sirens
Manufacturer		PUI Audio, Inc.
Series		AT
Packaging		Tray
Part Status		Active
Size / Dimension		0.551" Dia (14.00mm)
Mounting Type		Through Hole
Frequency		4.25kHz
Operating Temperature		-30°C ~ 85°C
Sound Pressure Level (SPL)		84dB @ 10V, 10cm
Current - Supply		12mA
Input Type		Peak-Peak Signal
Voltage Range		1 ~ 30V
Technology		Piezo
Termination		PC Pins
Ingress Protection		IP67 - Dust Tight, Waterproof
Port Location		Top
Driver Circuitry		Transducer, Externally Driven
Height - Seated (Max)		0.374" (9.50mm)
Voltage - Rated		10 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8531.80.9041
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
