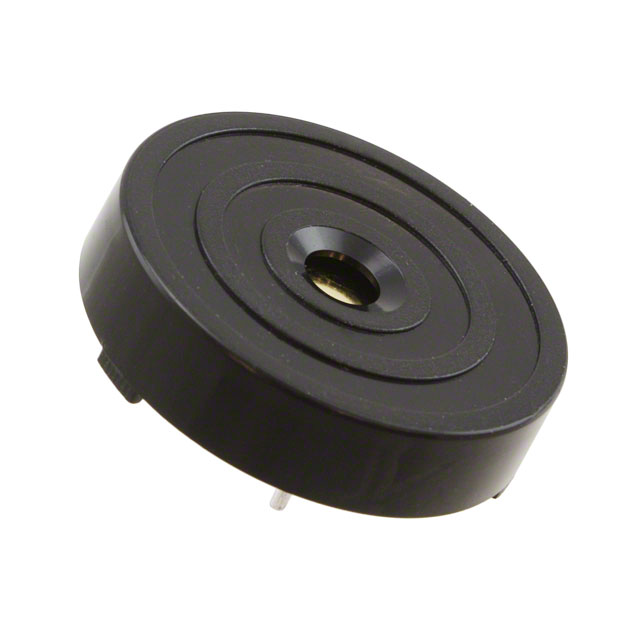

AT-3046-TWT-2-R _ Alarms, Buzzers, and Sirens_Audio Products

Part Number	AT-3046-TWT-2-R
Manufacturer	PUI Audio, Inc.
Other Part Numbers	668-1399-ND 668-1399
Description	BUZZER PIEZO 10V 30MM TH
Detailed Description	Buzzers Transducer, Externally Driven Piezo 10 V 10mA 4.6kHz 85dB @ 10V, 10cm Through Hole PC Pins
Manufacturer Standard Lead Time	18 weeks

Category		Audio Products Alarms, Buzzers, and Sirens
Manufacturer		PUI Audio, Inc.
Series		AT
Packaging		Tray
Part Status		Active
Size / Dimension		1.181" Dia (30.00mm)
Mounting Type		Through Hole
Frequency		4.6kHz
Operating Temperature		-20°C ~ 60°C
Sound Pressure Level (SPL)		85dB @ 10V, 10cm
Current - Supply		10mA
Input Type		Peak-Peak Signal
Operating Mode		Single Tone
Voltage Range		1 ~ 30V
Technology		Piezo
Termination		PC Pins
Port Location		Top
Driver Circuitry		Transducer, Externally Driven
Height - Seated (Max)		0.315" (8.00mm)
Voltage - Rated		10 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8531.80.9041
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
