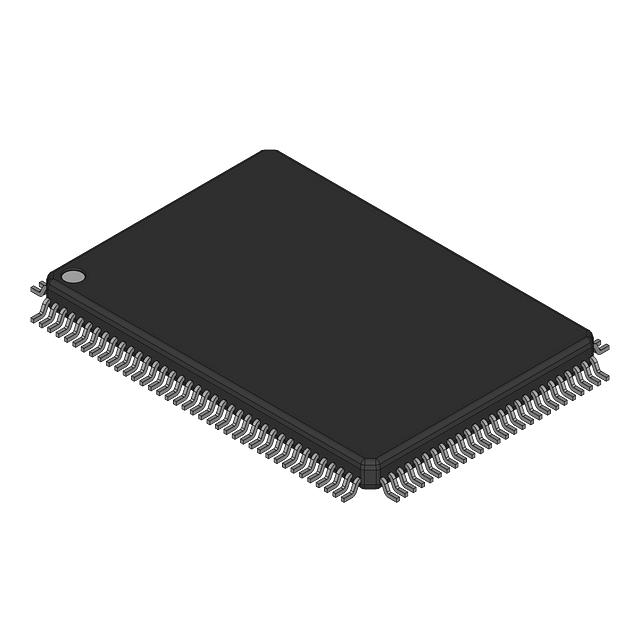

AT91SAM7L64-AU

AT91SAM7L64-AU

Part Number
AT91SAM7L64-AU
Manufacturer Atmel (Microchip Technology)
Other Part Numbers
2156-AT91SAM7L64-AU-AT-ND
2156-AT91SAM7L64-AU-AT
ATMATMAT91SAM7L64-AU
Description IC MCU 16/32B 64KB FLASH 128LQFP
Detailed Description ARM7® SAM7L Microcontroller IC 16/32-Bit 36MHz 64KB (64K x 8) FLASH 128-LQFP (20x14)

Product Attributes

Category
Manufacturer Atmel (Microchip Technology)
Series
SAM7L
Packaging
Tray
Part Status Obsolete
Package / Case 128-LQFP
Mounting Type Surface Mount
Speed 36MHz
Program Memory Size 64KB (64K x 8)
RAM Size 6K x 8
Operating Temperature -40°C ~ 85°C (TA)
Oscillator Type Internal
Program Memory Type FLASH
Core Processor ARM7®
Data Converters A/D 4x10b
Core Size 16/32-Bit
Voltage - Supply (Vcc/Vdd) 1.55V ~ 1.8V
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT
Supplier Device Package 128-LQFP (20x14)
Number of I/O 80
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 3A991A2
HTSUS 8542.31.0001
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
