ATF22LV10C-10PU

Part Number
ATF22LV10C-10PU
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
ATF22LV10C-10PU-ND
ATF22LV10C10PU
1611-ATF22LV10C-10PU
1611-ATF22LV10C-10PU-ND
1611-ATF22LV10C-10PUINACTIVE
Description IC PLD 10MC 10NS 24DIP
Detailed Description 22V10 Programmable Logic Device (PLD) IC 10 Macrocells 24-PDIP
Manufacturer Standard Lead Time 4 weeks

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
22V10
Packaging
Tube
Part Status Active

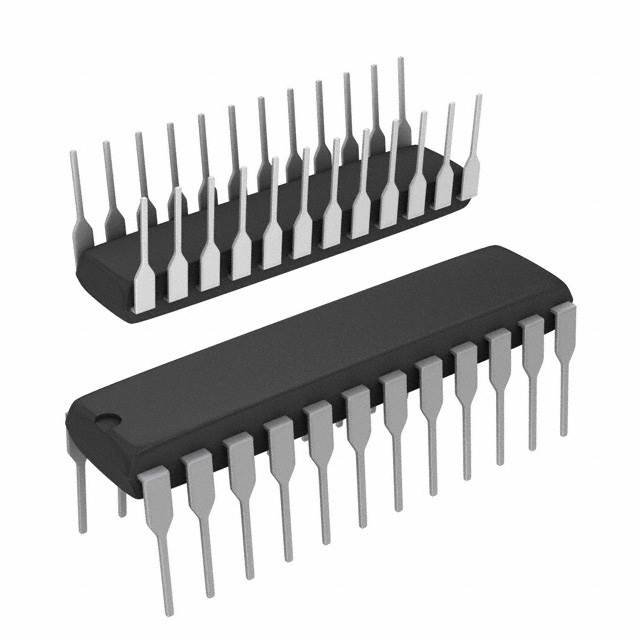

Package / Case 24-DIP (0.300", 7.62mm)
Mounting Type Through Hole
Voltage - Input 3.3V
Programmable Type EE PLD
Number of Macrocells 10
Supplier Device Package 24-PDIP
Speed 10 ns
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets ATF22LV10C-10PU
Video File Introducing Atmel Studio 7
Environmental Information Microchip RoHS
Environmental Information Microchip REACH
Environmental Information Microchip CA Prop65
Design Resources ATF22LV10C Development Tool Selector
PCN Design/Specification Marking Chgs 11/Jul/2017
PCN Assembly/Origin ATF750/ATF22 13/May/2021
PCN Packaging Transfer to Microchip/Label/Pkg 5/Sep/2016
PCN Packaging Boxes 07/Dec/2016
HTML Datasheet ATF22LV10C

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 255

Can ship immediately.
