ATF22V10B-15GM/883

Part Number
ATF22V10B-15GM/883
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
ATF22V10B-15GM883-ND
ATF22V10B-15GM883
Description IC PLD 10MC 15NS 24CDIP
Detailed Description 22V10 Programmable Logic Device (PLD) IC 10 Macrocells 24-CDIP
Manufacturer Standard Lead Time 26 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
22V10
Packaging
Tube
Part Status Active

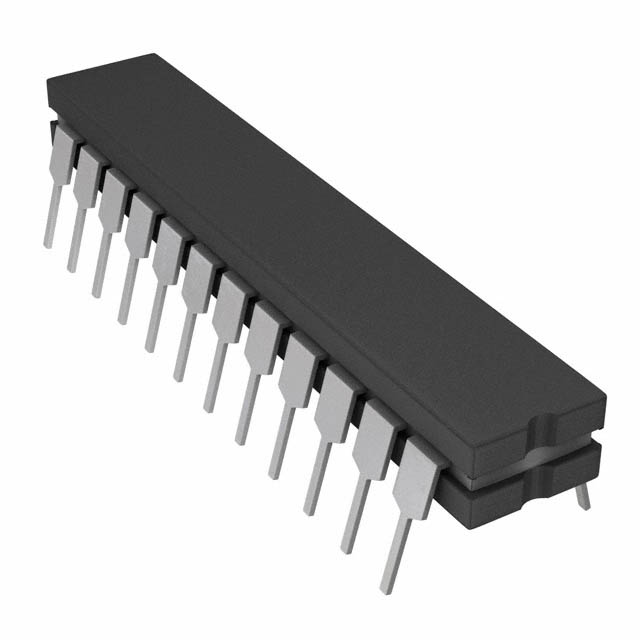

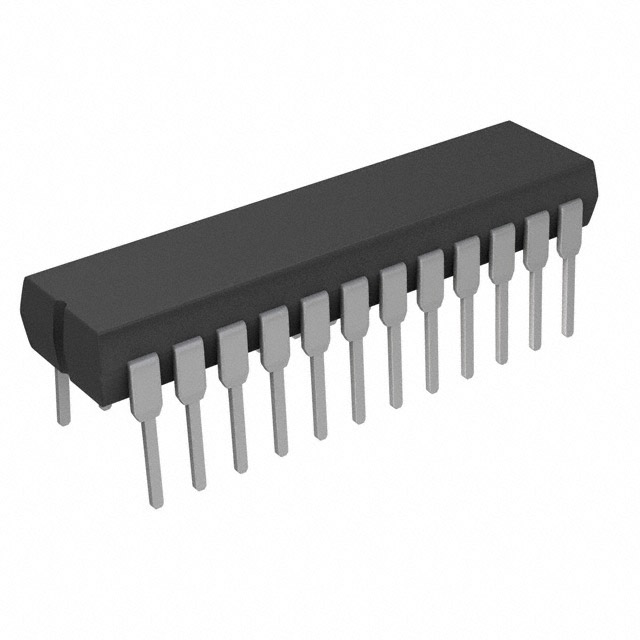

Package / Case 24-CDIP (0.300", 7.62mm)
Mounting Type Through Hole
Voltage - Input 5V
Programmable Type EE PLD
Number of Macrocells 10
Supplier Device Package 24-CDIP
Speed 15 ns
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets ATF22V10B-15GM/883
Environmental Information Microchip CA Prop65
Environmental Information Microchip REACH
Environmental Information Microchip RoHS
Design Resources ATF22V10B Development Tool Selector
PCN Design/Specification Marking Chgs 11/Jul/2017
PCN Assembly/Origin ATF22V10/ATF750C 28/Jun/2018
PCN Packaging Boxes 07/Dec/2016
PCN Packaging Transfer to Microchip/Label/Pkg 5/Sep/2016

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 3A001A2C
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

In Stock: 39

Can ship immediately.
