ATF22V10CQ-15JU

Part Number
ATF22V10CQ-15JU
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
ATF22V10CQ-15JU-ND
ATF22V10CQ15JU
Description IC PLD 10MC 15NS 28PLCC
Detailed Description 22V10 Programmable Logic Device (PLD) IC 10 Macrocells 28-PLCC (11.51x11.51)
Manufacturer Standard Lead Time 7 weeks

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
22V10
Packaging
Tube
Part Status Active

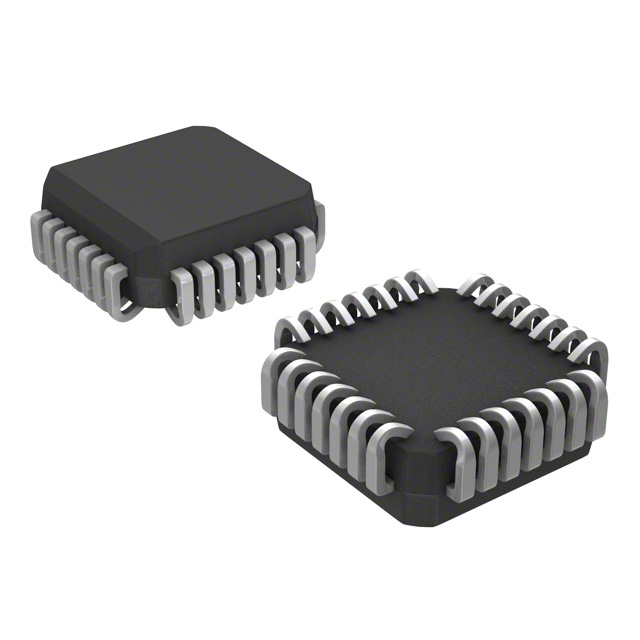

Package / Case 28-LCC (J-Lead)
Mounting Type Surface Mount
Voltage - Input 5V
Programmable Type EE PLD
Number of Macrocells 10
Supplier Device Package 28-PLCC (11.51x11.51)
Speed 15 ns
DigiKey Programmable Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets ATF22V10CQ-15JU
Video File Introducing Atmel Studio 7
Environmental Information Microchip RoHS
Environmental Information Microchip REACH
Environmental Information Microchip CA Prop65
Design Resources ATF22V10CQ Development Tool Selector
PCN Design/Specification Marking Chgs 11/Jul/2017
PCN Assembly/Origin ATYYY 03/Aug/2018
PCN Packaging MBB/Label Chgs 16/Nov/2018
PCN Packaging Transfer to Microchip/Label/Pkg 5/Sep/2016
HTML Datasheet ATF22V10C(Q)

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 7200

Can ship immediately.
