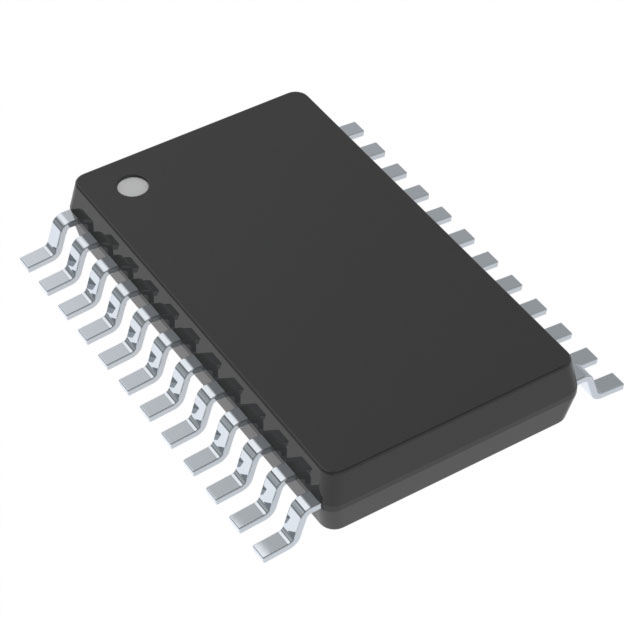

ATF22V10CQZ-20XU

Part Number
ATF22V10CQZ-20XU
Manufacturer Roving Networks (Microchip Technology)
Other Part Numbers
ATF22V10CQZ-20XU-ND
ATF22V10CQZ20XU
Description IC PLD 10MC 20NS 24TSSOP
Detailed Description 22V10 Programmable Logic Device (PLD) IC 10 Macrocells 24-TSSOP
Manufacturer Standard Lead Time 4 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Roving Networks (Microchip Technology)
Series
22V10
Packaging
Tube
Part Status Active
Package / Case 24-TSSOP (0.173", 4.40mm Width)
Mounting Type Surface Mount
Voltage - Input 5V
Programmable Type EE PLD
Number of Macrocells 10
Supplier Device Package 24-TSSOP
Speed 20 ns
DigiKey Programmable Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets ATF22V10CQZ-20XU
Video File Introducing Atmel Studio 7
Environmental Information Microchip CA Prop65
Environmental Information Microchip REACH
Environmental Information Microchip RoHS
Design Resources ATF22V10CQ Development Tool Selector
PCN Design/Specification Marking Chgs 11/Jul/2017
PCN Assembly/Origin Mult Dev Assembly Site 15/Feb/2024
PCN Packaging Boxes 07/Dec/2016
PCN Packaging MBB/Label Chgs 16/Nov/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 828

Can ship immediately.
