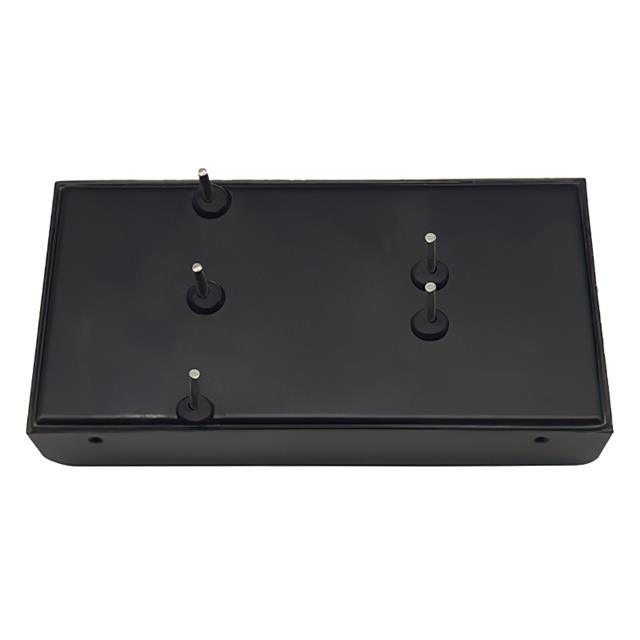

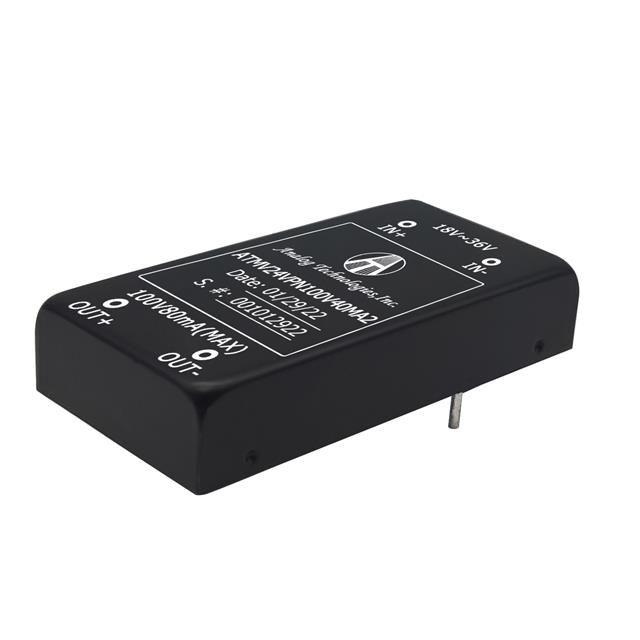

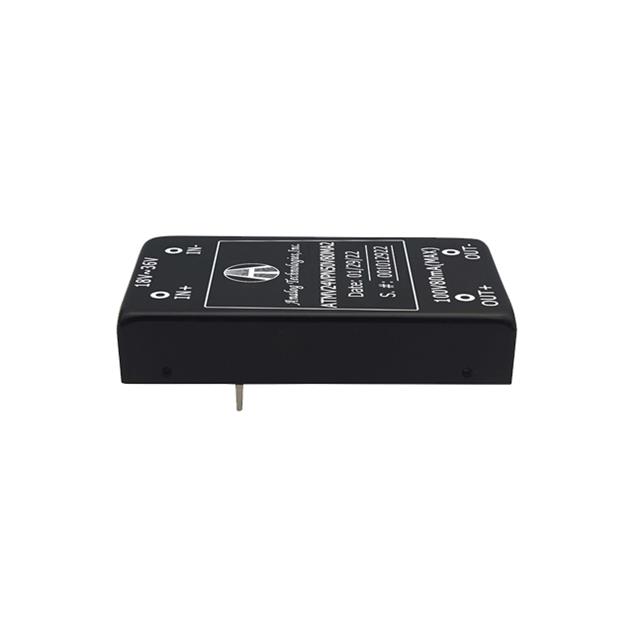

ATMV24VPN100V40MA2 _ DC DC Converters_Power Supplies

Part Number	ATMV24VPN100V40MA2
Manufacturer	Analog Technologies
Other Part Numbers	4022-ATMV24VPN100V40MA2-ND 3838-ATMV24VPN100V40MA2TB 3838-ATMV24VPN100V40MA2TB-ND 4022-ATMV24VPN100V40MA2TB-ND 3838-3838-ATMV24VPN100V40MA2-NDTB-ND 4022-ATMV24VPN100V40MA2TB 3838-3838-ATMV24VPN100V40MA2-NDTB 3838-ATMV24VPN100V40MA2-ND 4022-ATMV24VPN100V40MA2
Description	Mini Isolated 4W DC-DC Converter
Detailed Description	Isolated Module DC DC Converter 2 Output 100V -100V 40mA, 40mA 18V - 36V Input
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Analog Technologies
Series
Packaging		Bulk
Part Status		Active
Package / Case		5-DIP Module
Size / Dimension		2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C (With Derating)
Applications		ITE (Commercial)
Voltage - Input (Max)		36V
Efficiency		77%
Current - Output (Max)		40mA, 40mA
Voltage - Input (Min)		18V
Voltage - Output 1		100V
Voltage - Output 2		-100V
Power (Watts)		8 W
Number of Outputs		2
Voltage - Isolation		1.5 kV

RESOURCE TYPE		LINK
Datasheets		ATMV24VPN100V40MA2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
