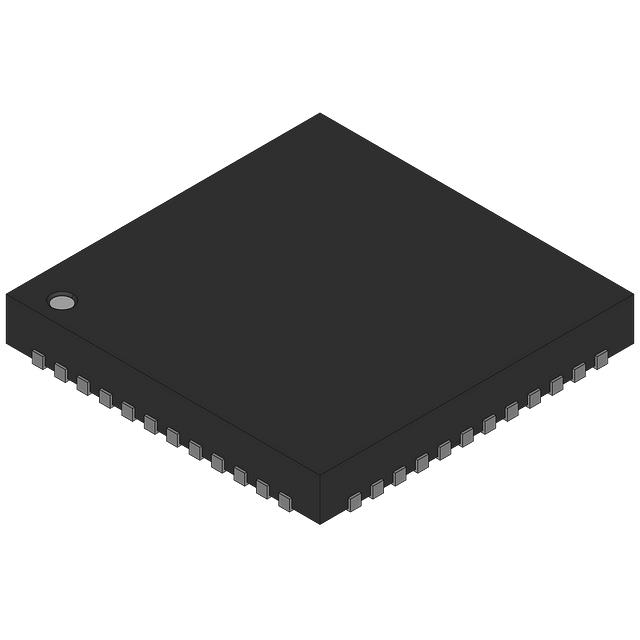

ATSAM3N4AA-MU

Part Number
ATSAM3N4AA-MU
Manufacturer Atmel (Microchip Technology)
Other Part Numbers
2156-ATSAM3N4AA-MU-AT-ND
2156-ATSAM3N4AA-MU-AT
ATMATMATSAM3N4AA-MU
Description IC MCU 32BIT 256KB FLASH 48QFN
Detailed Description ARM® Cortex®-M3 SAM3N Microcontroller IC 32-Bit Single-Core 48MHz 256KB (256K x 8) FLASH 48-QFN (7x7)

Product Attributes

Category
Manufacturer Atmel (Microchip Technology)
Series
SAM3N
Packaging
Tray
Part Status Obsolete
Package / Case 48-VFQFN Exposed Pad
Mounting Type Surface Mount
Speed 48MHz
Program Memory Size 256KB (256K x 8)
RAM Size 24K x 8
Operating Temperature -40°C ~ 85°C (TA)
Oscillator Type Internal
Program Memory Type FLASH
Core Processor ARM® Cortex®-M3
Data Converters A/D 8x10b
Core Size 32-Bit Single-Core
Voltage - Supply (Vcc/Vdd) 1.62V ~ 3.6V
Connectivity I2C, IrDA, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Supplier Device Package 48-QFN (7x7)
Number of I/O 34
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 3A991A2
HTSUS 8542.31.0001
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
