AX97-20471

Part Number
AX97-20471
Manufacturer Triad Magnetics
Other Part Numbers
AX97-20471-ND
Description FIXED IND 470UH 200MA 2.5OHM SMD

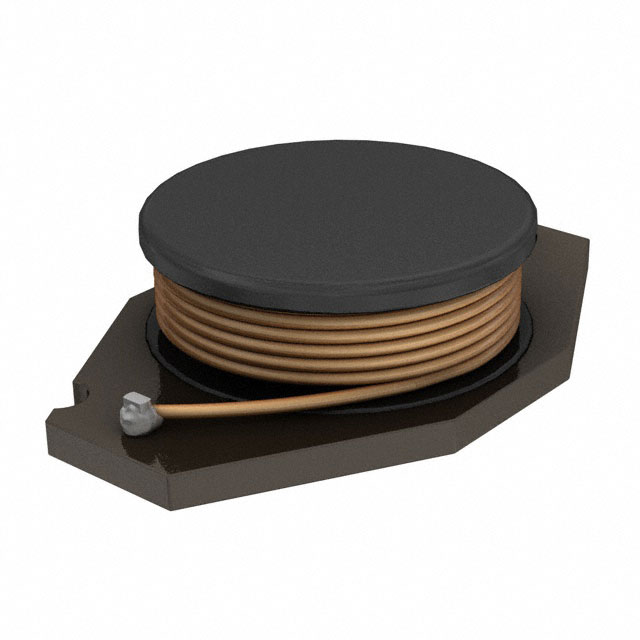

Detailed Description 470 µH Unshielded Drum Core, Wirewound Inductor 200 mA 2.5Ohm Max Nonstandard
Manufacturer Standard Lead Time 23 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Triad Magnetics
Series
AX97
Packaging
Box
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.530" L x 0.370" W (13.46mm x 9.40mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 2.5Ohm Max
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Supplier Device Package SMD
Height - Seated (Max) 0.138" (3.50mm)
Inductance 470 µH
Current Rating (Amps) 200 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets AX97-20471
Datasheets Standard Part Warranty Terms
Datasheets RoHS Statement

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order
