B12KV-AH

Part Number
B12KV-AH
Manufacturer NKK Switches
Other Part Numbers
B12KV-AH-ND
-B12KV-AH
B12KV-AH-RO
-B12KV-AH-RO-ND
B12KV-AH-RO-ND
B12KVAH
3937-B12KV-AH
-B12KV-AH-RO
Description SWITCH TOGGLE SPDT 0.4VA 28V

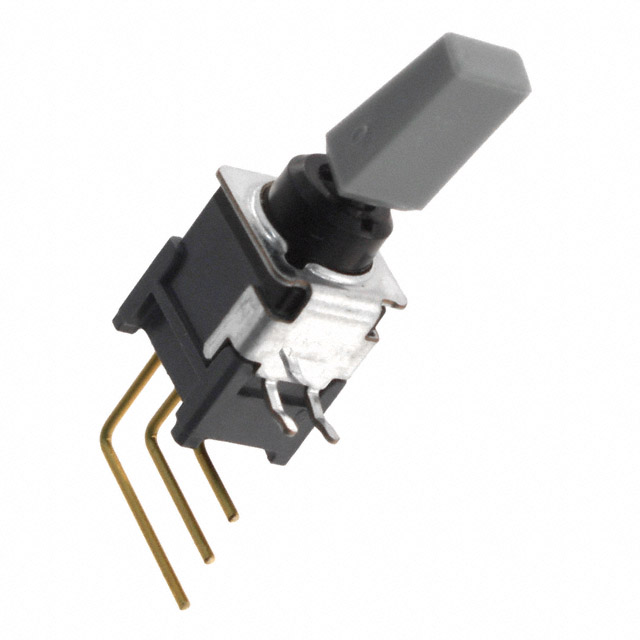

Detailed Description Toggle Switch SPDT Through Hole, Right Angle, Vertical
Manufacturer Standard Lead Time 21 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer NKK Switches
Series
B
Packaging
Tray
Part Status Active
Features Gray Actuator
Current Rating (Amps) 0.4VA (AC/DC)
Mounting Type Through Hole, Right Angle, Vertical
Circuit SPDT
Switch Function On-On
Operating Temperature -30°C ~ 85°C
Termination Style PC Pin
Illumination Non-Illuminated
Bushing Thread Unthreaded
Actuator Length 9.40mm
Actuator Type Snap On Paddle
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8536.50.9065
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 220
