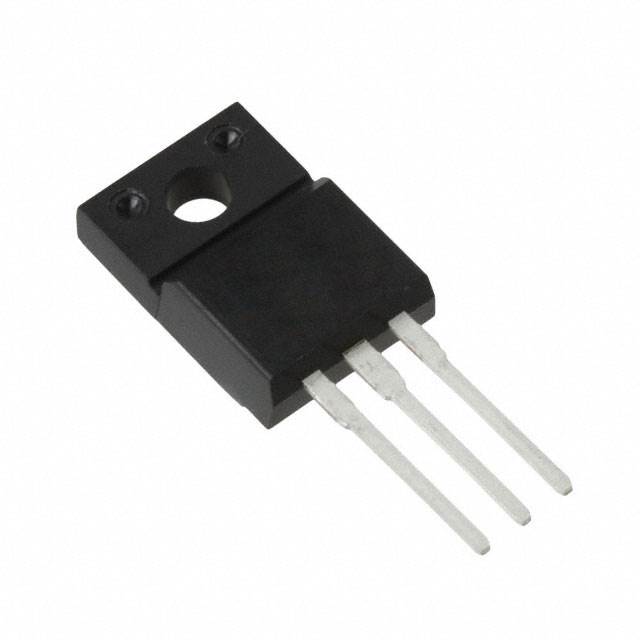

BA05T

BA05T

Part Number	BA05T
Manufacturer	ROHM Semiconductor
Other Part Numbers	BA05T-ND
Description	IC REG LINEAR 5V 1A TO220FP
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220FP
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ROHM Semiconductor
Series
Packaging		Tube
Part Status		Not For New Designs
Package / Case		TO-220-3 Full Pack
Output Type		Fixed
Mounting Type		Through Hole
Current - Output		1A
Operating Temperature		-40°C ~ 85°C
Output Configuration		Positive
Current - Quiescent (Iq)		2.5 mA
Voltage - Input (Max)		25V
Number of Regulators		1
Supplier Device Package		TO-220FP
Voltage - Output (Min/Fixed)		5V
PSRR		55dB (120Hz)
Protection Features		Over Current, Over Temperature, Over Voltage
Current - Supply (Max)		5 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BA05T

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 433

Can ship immediately.

Not recommended for new design, minimums may apply.

Tube

QUANTITY	UNIT PRICE	EXT PRICE
1	$2.18	$2.18
10	$1.96	$19.60
50	$1.85	$92.50
100	$1.57	$157.00
250	$1.48	$370.00
500	$1.29	$645.00
1,000	$1.07	$1,070.00
2,500	$1.00	$2,500.00
5,000	$0.96	$4,800.00
