Part Number | BA17807FP-E2 |
---|---|
Manufacturer | ROHM Semiconductor |
Other Part Numbers | BA17807FP-E2-ND |
Description | IC REG LINEAR 7V 1A TO252-3 |
Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252 |
Manufacturer Standard Lead Time | 6 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | ROHM Semiconductor | |
Series | ||
Packaging | Tape & Reel (TR) | |
Part Status | Active | |

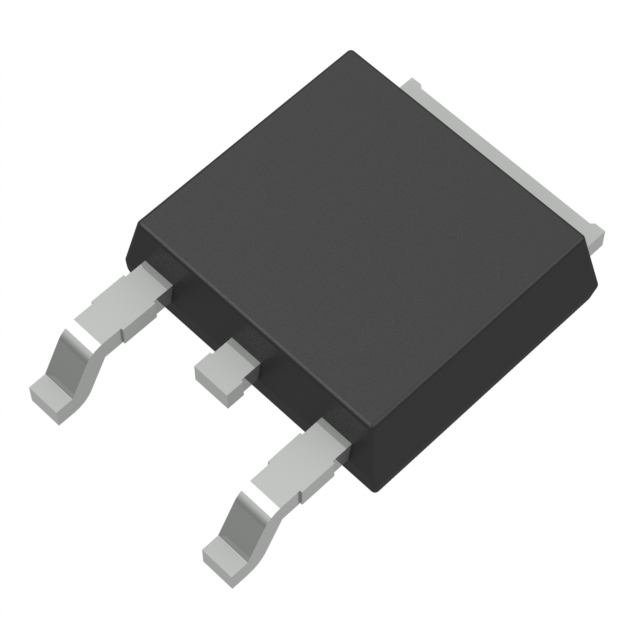

Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 | |
Output Type | Fixed | |
Mounting Type | Surface Mount | |
Current - Output | 1A | |
Operating Temperature | -40°C ~ 85°C | |
Output Configuration | Positive | |
Current - Quiescent (Iq) | 4.5 mA | |
Voltage - Input (Max) | 22V | |
Number of Regulators | 1 | |
Supplier Device Package | TO-252 | |
Voltage - Output (Min/Fixed) | 7V | |
PSRR | 69dB (120Hz) | |
Voltage Dropout (Max) | 2V @ 1A (Typ) | |
Current - Supply (Max) | 6 mA |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | TO252-3 Taping Spec | |
Datasheets | BA17807FP-E2 Flammability | |
Datasheets | TO-252 Part Marking | |
Datasheets | BA17807FP-E2 Whisker Info |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
2,000 | $0.62 | $1,240.00 |
6,000 | $0.59 | $3,540.00 |
10,000 | $0.57 | $5,700.00 |
