BA17815FP-E2

BA17815FP-E2

Part Number	BA17815FP-E2
Manufacturer	ROHM Semiconductor
Other Part Numbers	BA17815FP-E2TR-ND BA17815FP-E2CT-ND BA17815FP-E2DKR-ND BA17815FPE2 BA17815FP-E2DKR BA17815FP-E2TR BA17815FP-E2-ND BA17815FP-E2CT
Description	IC REG LINEAR 15V 1A TO252-3
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ROHM Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

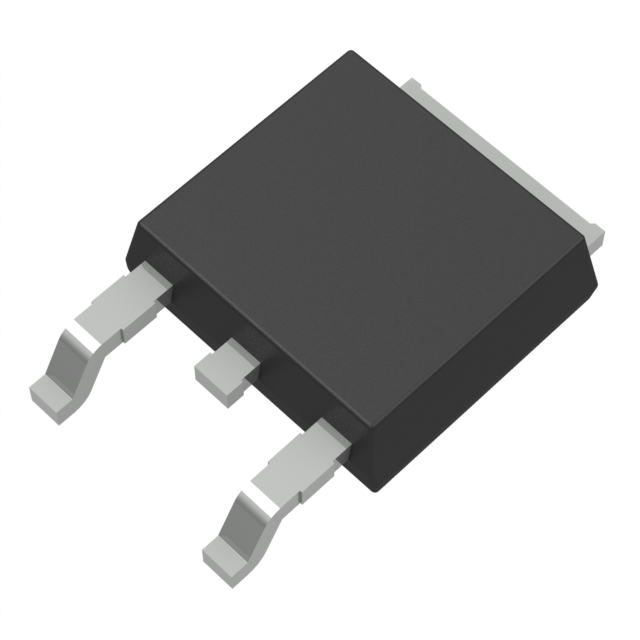

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		1A
Operating Temperature		-40°C ~ 85°C
Output Configuration		Positive
Current - Quiescent (Iq)		4.5 mA
Voltage - Input (Max)		30V
Number of Regulators		1
Supplier Device Package		TO-252
Voltage - Output (Min/Fixed)		15V
PSRR		62dB (120Hz)
Voltage Dropout (Max)		2V @ 1A (Typ)
Current - Supply (Max)		6 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TO252-3 Taping Spec
Datasheets		TO-252 Part Marking
Datasheets		BA17815FP-E2 Flammability
Datasheets		BA17815FP-E2 Whisker Info

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1631

Can ship immediately.
