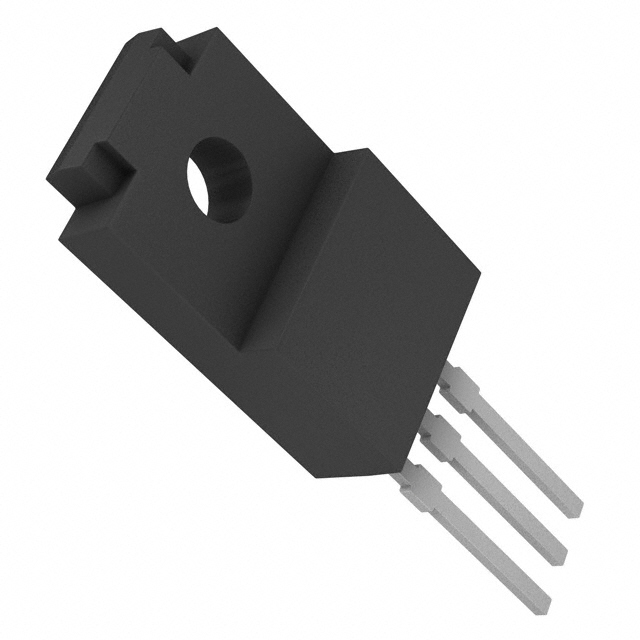

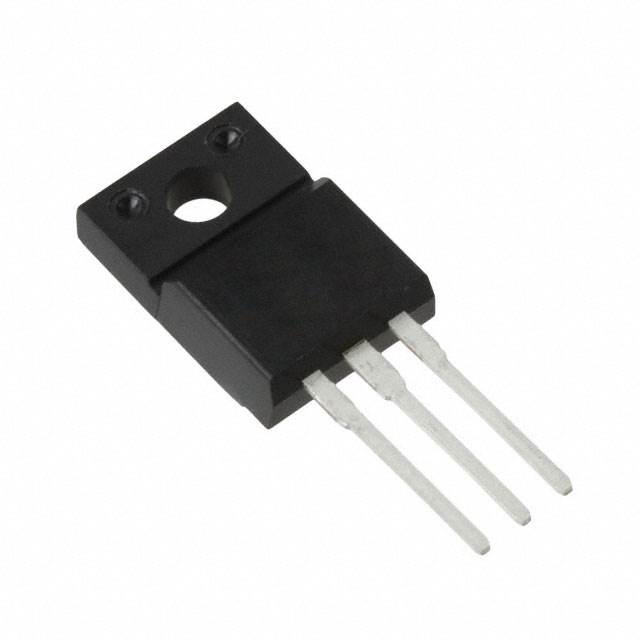

BA178M15T

BA178M15T

Part Number	BA178M15T
Manufacturer	ROHM Semiconductor
Other Part Numbers	BA178M15T-ND
Description	IC REG LINEAR 15V 500MA TO220FP
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-220FP
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ROHM Semiconductor
Series
Packaging		Bulk
Part Status		Not For New Designs
Package / Case		TO-220-3 Full Pack
Output Type		Fixed
Mounting Type		Through Hole
Current - Output		500mA
Operating Temperature		-40°C ~ 85°C
Output Configuration		Positive
Current - Quiescent (Iq)		4.5 mA
Voltage - Input (Max)		30V
Number of Regulators		1
Supplier Device Package		TO-220FP
Voltage - Output (Min/Fixed)		15V
PSRR		60dB (120Hz)
Voltage Dropout (Max)		2V @ 500mA (Typ)
Current - Supply (Max)		6 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BA178M15T

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 206

Can ship immediately.

Not recommended for new design, minimums may apply.
