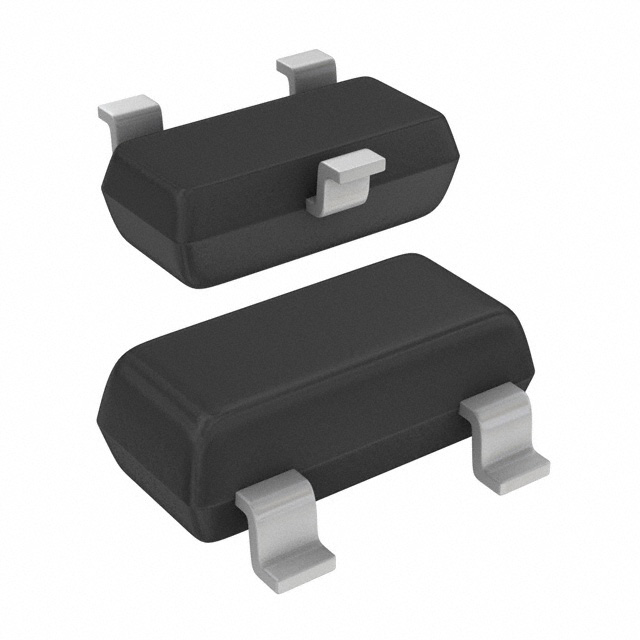

BAP70-05,215

BAP70-05,215

Part Number
BAP70-05,215
Manufacturer NXP Semiconductors
Other Part Numbers
568-BAP70-05,215TR-ND
568-BAP70-05,215CT-ND
568-BAP70-05,215DKR-ND
BAP70-05 T/R
568-BAP70-05,215DKR
BAP7005215
954-BAP70-05215-CHP
568-BAP70-05,215CT
934057581215
568-1942-2-ND
568-1942-1-ND
568-1942-6-ND
568-BAP70-05,215TR
568-1942-6
568-1942-2
954-BAP70-05215
568-1942-1
Description RF DIODE PIN 50V 250MW TO236AB
Detailed Description RF Diode PIN - 1 Pair Common Cathode 50V 100 mA 250 mW SOT-23 (TO-236AB)
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer NXP Semiconductors
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case TO-236-3, SC-59, SOT-23-3
Diode Type PIN - 1 Pair Common Cathode
Operating Temperature -65°C ~ 150°C (TJ)
Capacitance @ Vr, F 0.3pF @ 20V, 1MHz
Resistance @ If, F 1.9Ohm @ 100mA, 100MHz
Voltage - Peak Reverse (Max) 50V
Supplier Device Package SOT-23 (TO-236AB)
Current - Max 100 mA
Power Dissipation (Max) 250 mW

Documents & Media

RESOURCE TYPE LINK
Datasheets BAP70-05,215
Datasheets NXP USA Inc REACH
Datasheets NXP USA Inc RoHS Cert
Datasheets All Dev Label Update 15/Dec/2020
Datasheets SOT-23 Circuit

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1360

Can ship immediately.
