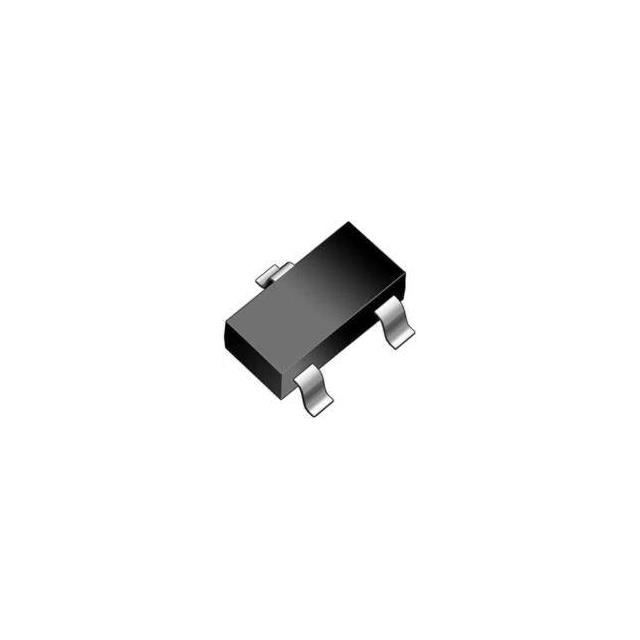

BAV70

Part Number
BAV70
Manufacturer HY Electronic (Cayman) Limited
Other Part Numbers
4024-BAV70TR-ND
4024-BAV70TR
Description DIODE ARRAY GP 70V 200MA SOT23
Detailed Description Diode Array 1 Pair Common Cathode 70 V 200mA Surface Mount
Datasheet Datasheet

Product Attributes

Category
Manufacturer HY Electronic (Cayman) Limited
Series
Packaging
Tape & Reel (TR)
Part Status Active
Mounting Type Surface Mount
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 6 ns
Technology Standard
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 200mA
Supplier Device Package SOT-23
Operating Temperature - Junction 150°C
Voltage - DC Reverse (Vr) (Max) 70 V
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Current - Reverse Leakage @ Vr 2.5 µA @ 100 V

Documents & Media

RESOURCE TYPE LINK
Datasheets BAV70

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant
