BCC070K

BCC070K

Part Number
BCC070K
Manufacturer Balluff
Other Part Numbers
2608-BCC070K-ND
2608-BCC070K
Description CONN RCPT MALE 5POS SCREW

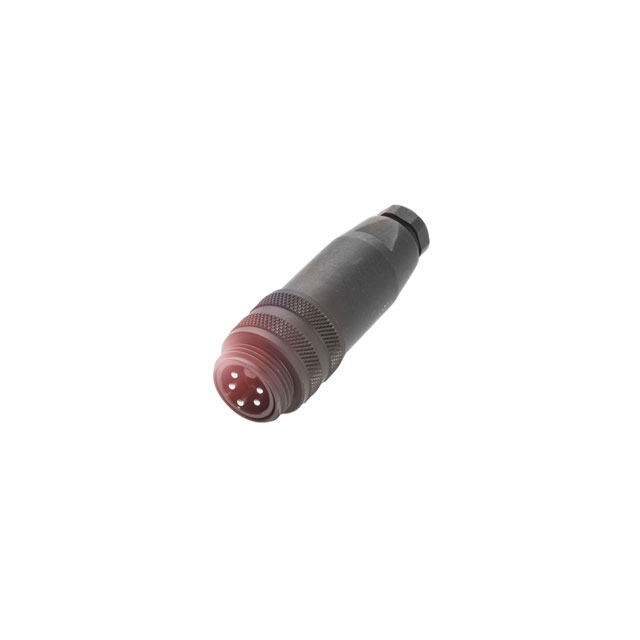

Detailed Description 5 Position Circular Connector Receptacle, Male Pins Screw

Product Attributes

Category
Manufacturer Balluff
Series
Packaging
Bag
Part Status Active
Features Backshell
Connector Type Receptacle, Male Pins
Color Black
Voltage Rating 600VAC/DC
Current Rating (Amps) 9A
Mounting Type Free Hanging (In-Line)
Shielding Unshielded
Number of Positions 5
Orientation Keyed
Shell Size - Insert 7/8"-5
Operating Temperature -25°C ~ 85°C
Fastening Type Threaded
Termination Screw
Ingress Protection IP67 - Dust Tight, Waterproof
Cable Opening 0.315" ~ 0.394" (8.00mm ~ 10.00mm)
Contact Material Brass
Shell Material Zinc Die Cast
Insert Material Polyamide (PA), Nylon; Polyurethane (PUR)
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Primary Material Metal

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.8000
Moisture Sensitivity Level (MSL) Vendor Undefined
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
Bag 1 $86.62 $86.62
Total Amount: $86.62

Bag

QUANTITY UNIT PRICE EXT PRICE
1 $86.62 $86.62
