BG 13 P - 8 OHM

BG 13 P - 8 OHM

Part Number	BG 13 P - 8 OHM
Manufacturer	VISATON
Other Part Numbers	2056-BG13P-8OHM-ND 2056-BG13P-8OHM
Description	SPEAKER 8OHM 20W TOP PORT 92DB
Detailed Description	8 Ohms Full Range Speaker 20 W 120 Hz ~ 20 kHz Top Round
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Product Attributes

Category		Audio Products Speakers
Manufacturer		VISATON
Series
Packaging		Bulk
Part Status		Active
Size / Dimension		5.157" Dia (131.00mm)
Shape		Round
Type		Full Range
Operating Temperature		-25°C ~ 70°C
Technology		Magnetic
Termination		Quick Connect
Frequency - Self Resonant		168Hz
Port Location		Top
Height - Seated (Max)		1.811" (46.00mm)
Impedance		8 Ohms
Power - Max		40 W
Power - Rated		20 W
Frequency Range		120 Hz ~ 20 kHz
Efficiency - dBA		92.00
Efficiency - Testing		1W/1M
Efficiency - Type		Sound Pressure Level (SPL)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BG 13 P - 8 OHM

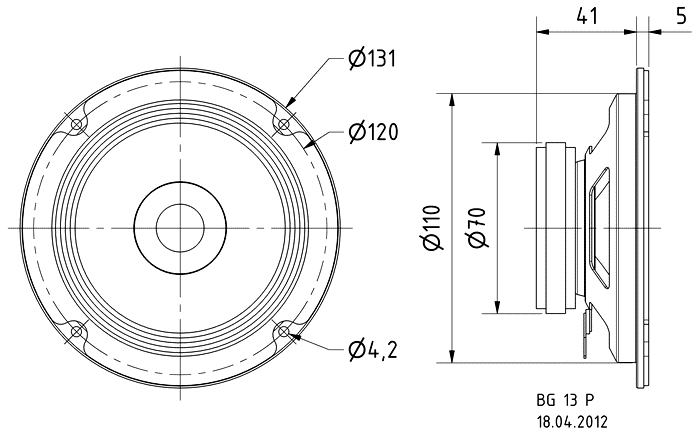

Datasheets		BG 13 P Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8518.29.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
