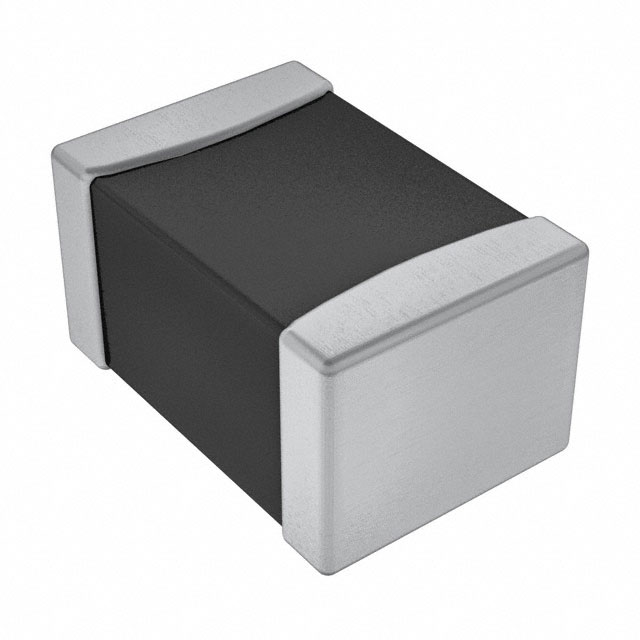

BLM15HG601SN1D

BLM15HG601SN1D

Part Number	BLM15HG601SN1D
Manufacturer	TOKO / Murata
Other Part Numbers	490-3998-2-ND 490-3998-1-ND 490-3998-6-ND 490-3998-2 490-3998-1 490-3998-6
Description	FERRITE BEAD 600 OHM 0402 1LN
Detailed Description	600 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 300mA 700mOhm
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Ferrite Beads and Chips
Manufacturer		TOKO / Murata
Series		EMIFIL®, BLM15
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0402 (1005 Metric)
Filter Type		Signal Line
Size / Dimension		0.039" L x 0.022" W (1.00mm x 0.55mm)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Height (Max)		0.022" (0.55mm)
Current Rating (Max)		300mA
DC Resistance (DCR) (Max)		700mOhm
Number of Lines		1
Impedance @ Frequency		600 Ohms @ 100 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BLM15HG601SN1D
Datasheets		BLM15 Series Top
Datasheets		BLx Chip Part Numbering

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 10694

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.13	$0.13
Total Amount: $0.13

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
10,000	$0.03	$300.00
20,000	$0.03	$600.00
30,000	$0.03	$900.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.13	$0.13
10	$0.11	$1.10
25	$0.09	$2.25
50	$0.07	$3.50
100	$0.06	$6.00
250	$0.05	$12.50
500	$0.04	$20.00
1,000	$0.04	$40.00
5,000	$0.03	$150.00
