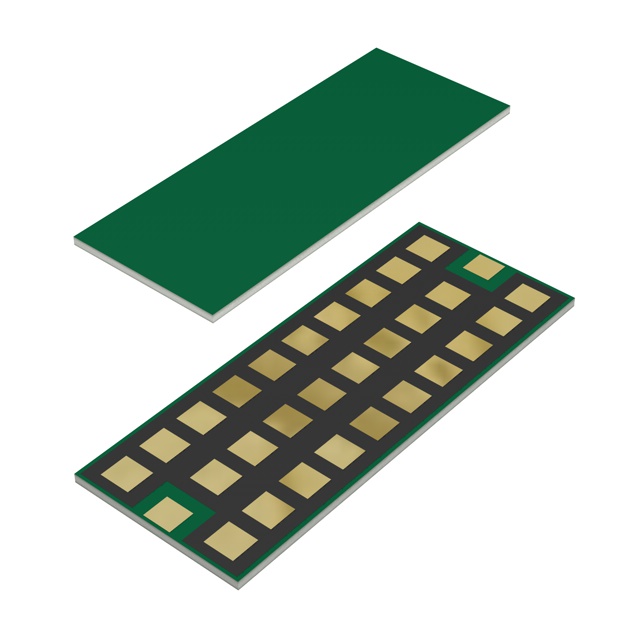

BP0EA3284A700

BP0EA3284A700

Part Number	BP0EA3284A700
Manufacturer	KYOCERA AVX
Other Part Numbers	478-BP0EA3284A700-ND 478-BP0EA3284A700DKR-ND 478-BP0EA3284A700DKR 478-BP0EA3284A700CT-ND 478-BP0EA3284A700INACTIVEDKR 478-BP0EA3284A700TR-ND 478-BP0EA3284A700TR 478-BP0EA3284A700CT 478-BP0EA3284A700 478-BP0EA3284A700INACTIVECT
Description	RF FILT BAND PASS 3.284GHZ 30SMD
Detailed Description	3.284GHz Center Frequency Band Pass RF Filter (Radio Frequency) 657MHz Bandwidth 5dB 30-SMD, No Lead
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters RF Filters
Manufacturer		KYOCERA AVX
Series		BP
Packaging		Tray
Part Status		Active
Package / Case		30-SMD, No Lead
Filter Type		Band Pass
Size / Dimension		0.460" L x 0.170" W (11.68mm x 4.32mm)
Mounting Type		Surface Mount
Frequency		3.284GHz Center
Insertion Loss		5dB
Bandwidth		657MHz
Ripple		1.5dB
Height (Max)		0.022" (0.56mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BP0EA3284A700

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8543.70.9860
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 24

Can ship immediately.
