BSP1109-05H1.7 _ Alarms, Buzzers, and Sirens_Audio Products

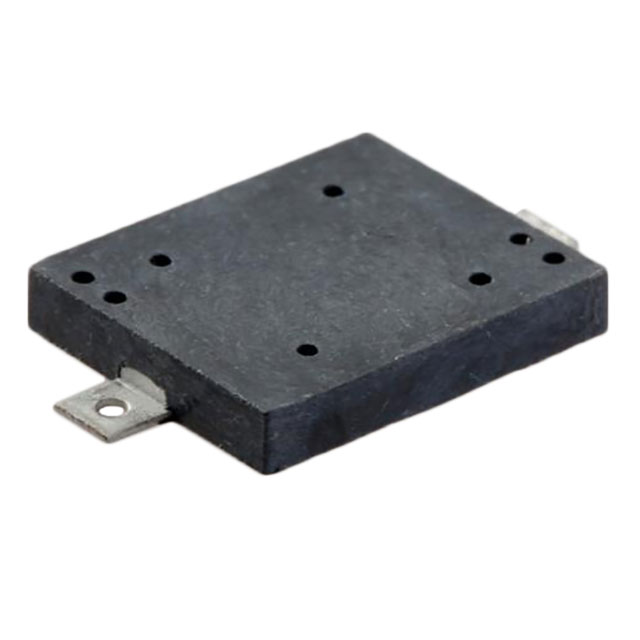

Part Number	BSP1109-05H1.7
Manufacturer	BeStar Technologies, Inc.
Other Part Numbers	2895-BSP1109-05H1.7-ND 2895-BSP1109-05H1.7
Description	BUZZER PIEZO 5V 11X9MM SMD
Detailed Description	Buzzers Transducer, Externally Driven Piezo 5 V 1mA 4.1kHz 70dB @ 5V, 10cm Surface Mount Solder Tabs
Datasheet	Datasheet

Category		Audio Products Alarms, Buzzers, and Sirens
Manufacturer		BeStar Technologies, Inc.
Series		BSP
Packaging		Box
Part Status		Active
Size / Dimension		0.433" L x 0.354" W (11.00mm x 9.00mm)
Mounting Type		Surface Mount
Frequency		4.1kHz
Operating Temperature		-20°C ~ 70°C
Sound Pressure Level (SPL)		70dB @ 5V, 10cm
Current - Supply		1mA
Input Type		Peak-Peak Signal
Operating Mode		Single Tone
Voltage Range		1 ~ 25V
Technology		Piezo
Termination		Solder Tabs
Port Location		Top
Driver Circuitry		Transducer, Externally Driven
Height - Seated (Max)		0.067" (1.70mm)
Voltage - Rated		5 V

RESOURCE TYPE		LINK
Datasheets		BSP1109-05H1.7

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8531.80.9000
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
