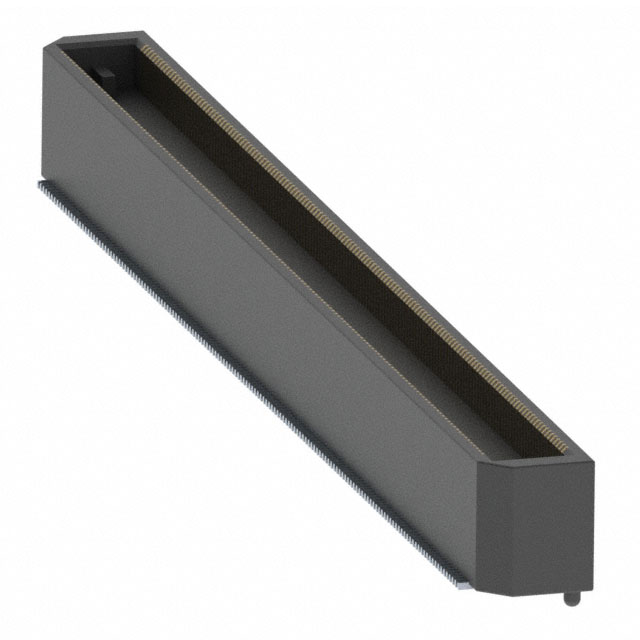

BTH-150-02-L-D-A-K

BTH-150-02-L-D-A-K

Part Number	BTH-150-02-L-D-A-K
Manufacturer	Samtec, Inc.
Other Part Numbers	BTH-150-02-L-D-A-K-ND
Description	CONN HDR 300POS SMD GOLD
Detailed Description	300 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		Samtec, Inc.
Series		BTH
Packaging		Tray
Part Status		Active
Features		Board Guide
Connector Type		Header, Outer Shroud Contacts
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		300
Pitch		0.020" (0.50mm)
Height Above Board		0.286" (7.26mm)
Contact Finish Thickness		10.0µin (0.25µm)
Mated Stacking Heights		8mm
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BTH-150-02-L-D-A-K

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
